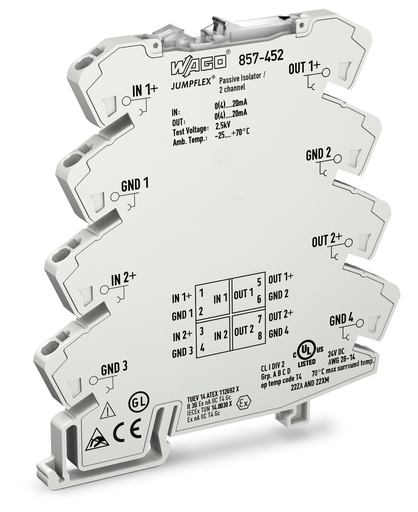

Features

• No additional supply voltage required
• Safe 2-way isolation with 3 kV test voltage per EN 61010-1

Approvals

• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
• Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
• Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
• TUEV Nord Cert GmbH, IECEx, TÜV_14_ATEX_112692_X, EN 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
• Polski Rejestr Statków, PRS, TE/2186/880590/18
• CQST/CNEx, CCCEx, 2020312310000210, CNCA-C23-01
• TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
• Nippon Kaiji Kyokai, NK, TA17255M
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1

Specifications

Notes

• Safety information 1: Ausgänge dürfen nicht offen bleiben!
• Note: Geschirmte Signalleitungen verwenden!Verwenden Sie für analoge Ein- und Ausgangssignale ausschließlich geschirmte Signalleitungen.Nur so ist gewährleistet, dass die für das Gerät angegebene Genauigkeit und Störfestigkeitauch bei Vorliegen von auf das Signalkabel einwirkenden Störungen erreicht werden.

Configuration

• Configuration options: Pre-configured

Input

• Input signal type: Current
• Input signal (current): 0 … 20 mA; 4 … 20 mA
• Voltage drop at input: ≤ 2.5 V (at 20 mA (output))
• Input current (max.): 40 mA
• Input voltage (max.): 20 V
• Response threshold: 200 µA

Output – Analog

• Output signal type: Current
• Output signal (current): 0 … 20 mA; 4 … 20 mA
• Load impedance (current output): ≤ 600 ΩTemperature range restrictions may occur.

Signal Processing

• Limit frequency: 100 Hz
• Step response (typ.): 3.5 ms

Measurement Error

• Transmission error (typ.): ≤ 0.1 % of upper-range value
• Load error: ≤ 0.05 % (of upper-range value; per 100 Ω load)
• Temperature coefficient: ≤ 0.01 %/K

Supply

• Power supply type: Passive (via input)

Test Voltage

• Test voltage (input/output): AC 3 kV; 50 Hz; 1 min

Insulation Parameters Per En/Ul 61010-1

• Insulation type (input/analog output): Reinforced insulation

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Cable type: Shielded cable

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 62.000 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 15 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 85 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2
• EMC emission of interference: EN 61000-6-4
• Standards/Specifications: EN 61010-1

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454471354
• Customs tariff number Sales Organisation Germany: 85437090300
