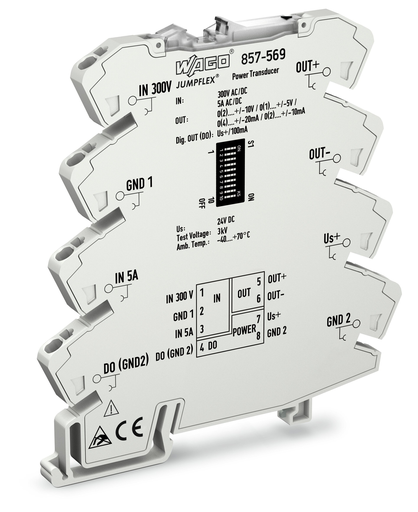

Features

• Two isolated measurement inputs for both AC/DC voltages and currents
• RMS measurement or arithmetic mean value
• A digital signal output reacts to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values).
• Switchable filter function
• Safe 3-way isolation with 3 kV test voltage per DIN EN 61010-1

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Configuration

• Configuration options: DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App

Input

• Input signal type: Voltage || Current
• Input signal (voltage): AC/DC 300 V (IN 1)
• Input signal (current): AC/DC 0 … 5 A (IN 2)
• Frequency range: 15 … 70 Hz (AC)
• Input resistance (current input): ≤ 10 mΩ
• Input resistance (voltage input): ≥ 300 kΩ
• Input current (max.): 10 A AC/DC (IN 2; permanent)
• Input voltage (max.): 600 V (IN 1; permanent)
• Response threshold: 300 mV (IN 1); 10 mA (IN 2)
• Resolution (voltage): 30 mV (IN 1)
• Resolution (current): 1 mA (IN 2)

Output – Analog

• Output signal type: Current || Voltage
• Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (can be inverted (also bipolar))
• Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (can be inverted (also bipolar))
• Load impedance (voltage output): ≥ 1 kΩ
• Load impedance (current output): ≤ 600 Ω

Output – Digital

• Switching voltage (DO) (max.): Supply voltage (applied)
• Continuous current (DO) (max.): 100 mA (no internal restriction)
• Number of switching thresholds (DO): 1 or 2 (adjustable)
• Configurable rise/fall delay time (DO): 0 … 60 s (via software)

Signal Processing

• Measurement method: RMS measurement; Arithmetic mean value
• Limit frequency: 2 kHz
• Software filter (adjustable): Moving average value (filter level: 30)
• Step response (typ.): 100 ms

Measurement Error

• Transmission error (max.): ≤ 0.5 % (of the full scale value)
• Temperature coefficient: ≤ 0.01 %/K

Supply

• Power supply type: 24 VDC
• Nominal supply voltage US: DC 24 V
• Supply voltage range: ±30 %
• Power consumption at nominal supply voltage: ≤ 46 mA (+ IDO)

Test Voltage

• Test voltage (input/analog output/supply/service interface): 2.5 kVAC; 50 … 60 Hz; 1 min

Insulation Parameters Per En/Ul 61010-1

• Line-to-neutral conductor voltage (AC) max.: 150 V
• Overvoltage category: II
• Pollution degree: 2
• Insulation type (input/analog output/supply/service interface): Reinforced insulation

Insulation Parameters Per En 61010-1

• Line-to-neutral conductor voltage (AC) max.: 300 V
• Overvoltage category: II
• Pollution degree: 2
• Insulation type (input/analog output/supply/service interface): Double insulation (impedance and basic insulation)Requirement: The GND 1 input is dangerous when active and the measurement is conducted as a low-side measurement!

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 39.200 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C (at nominal current)
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 10 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 90 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
• EMC emission of interference: EN 61000-6-3; EN 61326-2-3; EN 50121-3-2
• Standards/Specifications: EN 61010-1 || EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143501026
• Customs tariff number Sales Organisation Germany: 85437090300
