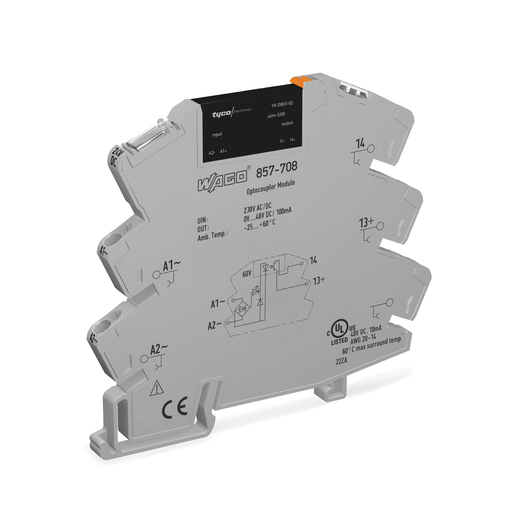

Features

Approvals

• DEKRA EXAM GmbH, IECEx, IECEx_BVS_14.0079_X, IEC 60079-0
• CQST/CNEx, CCCEx, 2020312304000757, CNCA-C23-01
• UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
• DEKRA EXAM GmbH, ATEX, BVS_14_ATEX_E_091_X, EN 60079-0

Specifications

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

• Nominal input voltage UN: AC/DC 230 V
• Input voltage range (low level): AC/DC 0 … 30 V
• Input voltage range (high level): AC/DC 200 … 253 V
• Nominal input current at UN: 3.25 mA

Load Circuit

• Circuit type: 2-wire connection
• Limiting continuous current: 0.1 A
• Nominal output voltage: DC 24 V
• Output voltage range: DC 0 … 48 V
• Voltage drop at output (max.): ≤ DC 1 V
• Leakage current at rated voltage: ≤ 1 µA
• Switching current (min.): 50 µA
• Turn-on time: ≤ 4.5 ms
• Turn-off time: ≤ 10 ms
• Switching frequency: ≤ 20 Hz

Signaling

• Status indicator: Yellow LED

Safety And Protection

• Dielectric strength, control/load circuit (AC, 1 min): 3.75 kVrms
• Protection type: IP20

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 81 mm / 3.189 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.577 MJ
• Weight: 30.700 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -20 … 60 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61000-6-2 || EN 61000-6-3 || EN 61373 || EN 61010-2-201 || UL 508

Basic Relay

• WAGO Basic Relay: 857-165

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454835514
• Customs tariff number Sales Organisation Germany: 85365005000
