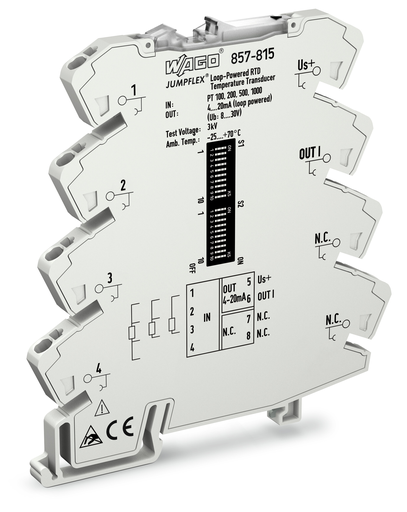

Features

• No additional supply voltage required
• For Pt100, Pt200, Pt500 and Pt1000 sensors, as well as resistors up to 4.5 kOhm
• 2-, 3- and 4-wire connection technology
• Calibrated measurement range switching
• Detects a sensor wire break/short circuit
• Safe 2-way isolation with 3 kV test voltage per EN 61010-1

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Configuration

• Configuration options: DIP switch

Input

• Input signal type: Pt sensors || Resistor
• Input current (max.): 50 mA
• Input voltage (max.): 30 V

Input – Rtd Sensors

• Sensor types (RTD): Pt100 || Pt200 || Pt500 || Pt1000
• Sensor connection: 2-wire; 3-wire; 4-wire (switchable)
• Sensor power supply (RTD) (max.): ≤ 0.5 mA
• Measurement range, temperature (RTD): -200 … 850°C
• Measurement span (RTD) (min.): 50 K

Input – Resistors

• Input range (resistor): 0 … 1 kΩ; 0 … 4.5 kΩ

Output – Analog

• Output signal type: Current
• Output signal (current): 4 … 20 mA; 20 … 4 mA
• Load impedance (current output): See derating graphic

Signal Processing

• Step response (typ.): 1000 ms

Measurement Error

• Transmission error (typ.): ≤ 0.1 % at full measurement span
• Transmission error for the set measurement range: ≤ ((40 K/set measurement range [K]) + 0.1) %
• Temperature coefficient: ≤ 0.02 %/K

Supply

• Power supply type: Loop-powered (via output)
• Supply voltage: DC 8 … 30 V (Power is derived from the output circuit.)

Test Voltage

• Test voltage (input/analog output): 3 kVAC; 50 … 60 Hz; 1 min

Insulation Parameters Per En/Ul 61010-1

• Line-to-neutral conductor voltage (AC) max.: 150 V
• Overvoltage category: II
• Pollution degree: 2
• Insulation type (input/analog output): Reinforced insulation

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 38.940 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C (at nominal current)
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 10 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 90 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2; EN 61326-1; EN 50121-3-2
• EMC emission of interference: EN 61000-6-3; EN 61326-1; EN 50121-3-2
• Standards/Specifications: EN 61010-1 || EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143475648
• Customs tariff number Sales Organisation Germany: 85437090300
