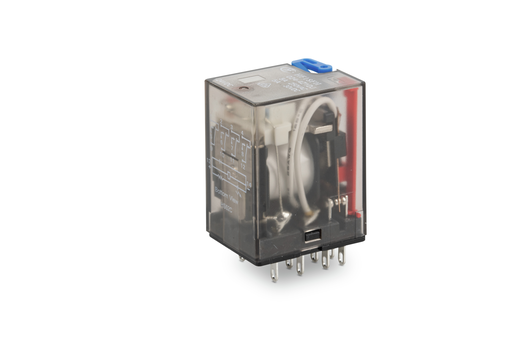

Specifications

Notes

• Note: To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.

Control Circuit

• Nominal input voltage UN: DC 24 V
• Nominal input current at UN: 36.9 mA

Load Circuit

• Number of changeover/switchover contacts: 4
• Contact material (relay): AgCe + Au
• Limiting continuous current: 5 A
• Inrush current (resistive) (max.): (AC) 15 A / 4 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1250 VA; DC (see load limit curve)
• Recommended minimum load: 5 V / 1 mA / 50 mW
• Pull-in time (typ.): 25 ms
• Drop-out time (typ.): 25 ms
• Bounce time (typ.): 4 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 20 x 106 switching operations

Signaling

• Status indicator: Red LED || Mechanical

Safety And Protection

• Dielectric strength, control/load circuit (AC, 1 min): 1.5 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms
• Protection type: IP20

Physical Data

• Width: 21.5 mm / 0.846 inch
• Height from the surface: 35 mm / 1.378 inch
• Depth: 28 mm / 1.102 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.000 MJ
• Weight: 35.000 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C

Standards And Specifications

• Standards/Specifications: EN 61810-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143532013
• Customs tariff number Sales Organisation Germany: 85364900990
