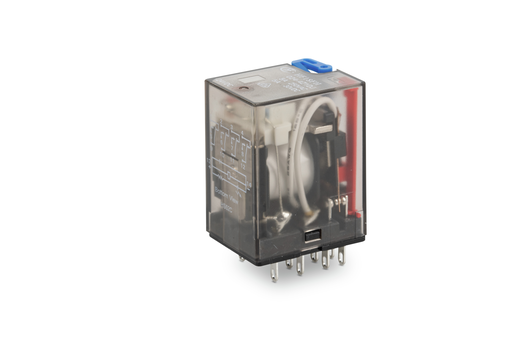

Specifications

Control Circuit

• Nominal input voltage UN: AC 230 V
• Nominal input current at UN: 11 mA

Load Circuit

• Number of changeover/switchover contacts: 2
• Contact material (relay): AgNi
• Limiting continuous current: 12 A
• Inrush current (resistive) (max.): (AC) 24 A / 4 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 3000 VA; DC (see load limit curve)
• Switching capacity: AC-15: 1.5 A / AC 240 V; DC-13: 0.1 A / DC 250 V
• Recommended minimum load: 10 V / 5 mA / 300 mW
• Pull-in time (typ.): 10 ms
• Drop-out time (typ.): 8 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 20 x 106 switching operations
• Switching frequency with/without load (max.): 20 min-1 / 200 min-1

Signaling

• Status indicator: Red LED || Mechanical

Safety And Protection

• Dielectric strength, control/load circuit (AC, 1 min): 2.5 kVrms
• Dielectric strength, open contact (AC, 1 min): 1.5 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 2.5 kVrms
• Protection type: IP20

Physical Data

• Width: 21.2 mm / 0.835 inch
• Height from the surface: 35.6 mm / 1.402 inch
• Depth: 27.5 mm / 1.083 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.000 MJ
• Weight: 31.500 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C

Standards And Specifications

• Standards/Specifications: EN 61810-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143693264
• Customs tariff number Sales Organisation Germany: 85364900990
