Specifications

Electrical Data

• Operating voltage: ≤ AC/DC 250 V
• Rated current (terminal): 6 A
• Rated current (jumper): 17 A

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 3
• Protection type: IP00
• Protection class with end and intermediate plate: IP20

Connection Data

• Connection points (number): 5
• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 91 mm / 3.583 inch
• Depth from upper edge of DIN-rail: 56 mm / 2.205 inch

Mechanical Data

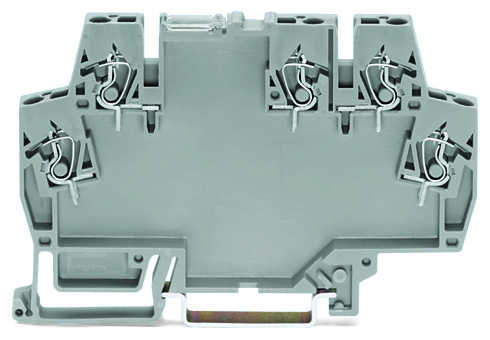

• Housing design: Rail-mount terminal block
• Mounting type: DIN-35 rail
• Mounting position: Any

Material Data

• Color: Gray
• Flammability class per UL94: V0
• Housing material: PA 6.6
• Fire load: 0.313 MJ
• Weight: 14.412 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Limit temperature (plastic): 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4050821809654
• Customs tariff number Sales Organisation Germany: 85369010000
