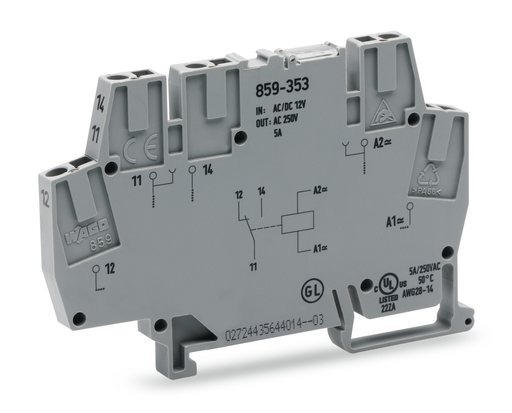

Features

Approvals

• Polski Rejestr Statków, PRS, TE/2186/880590/18
• UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
• CQST/CNEx, CCCEx, 2021312304000982, CNCA-C23-01
• Nippon Kaiji Kyokai, NK, TA17255M

Specifications

Notes

• Note: To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Control Circuit

• Nominal input voltage UN: AC/DC 48 V
• Input voltage range: -15 … +10 %
• Nominal input current at UN: 5.3 mA

Load Circuit

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgSnO2
• Limiting continuous current: 5 A
• Inrush current (resistive) (max.): (AC) 20 A / 0.02 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1250 VA; DC (see load limit curve)
• Recommended minimum load: 10 V / 10 mA; 24 V / 1 mA
• Pull-in time (typ.): 15 ms
• Drop-out time (typ.): 25 ms
• Bounce time (typ.): 3.5 ms
• Electrical life (NO; resistive load; 23 °C): 50 x 103 switching operations
• Mechanical life: 5 x 106 switching operations
• Switching frequency with/without load (max.): 6 min-1 / 180 min-1

Signaling

• Status indicator: Red LED

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 91 mm / 3.583 inch
• Depth from upper edge of DIN-rail: 56 mm / 2.205 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.313 MJ
• Weight: 22.299 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 61810-1 || EN 61373 || GL || UL 508

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143604123
• Customs tariff number Sales Organisation Germany: 85364900990
