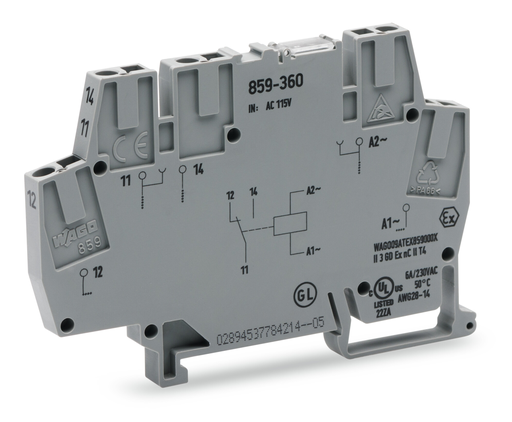

Features

Approvals

• Nippon Kaiji Kyokai, NK, TA17255M
• UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
• Polski Rejestr Statków, PRS, TE/2186/880590/18
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
• CQST/CNEx, CCCEx, 2021312304000982, CNCA-C23-01

Specifications

Notes

• Note: To prevent damaging the gold layer, 30 V switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Control Circuit

• Nominal input voltage UN: AC/DC 230 V
• Input voltage range: -15 … +10 %
• Nominal input current at UN: 3.5 mA

Load Circuit

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgNi + Au
• Limiting continuous current: 5 A
• Inrush current (resistive) (max.): (AC) 20 A / 0.02 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1250 VA; DC (see load limit curve)
• Recommended minimum load: 1 V / 1 mA / 1 mW
• Pull-in time (typ.): 15 ms
• Drop-out time (typ.): 30 ms
• Bounce time (typ.): 3.5 ms
• Electrical life (NO; resistive load; 23 °C): 50 x 103 switching operations
• Mechanical life: 5 x 106 switching operations
• Switching frequency with/without load (max.): 6 min-1 / 180 min-1

Signaling

• Status indicator: Red LED

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 91 mm / 3.583 inch
• Depth from upper edge of DIN-rail: 56 mm / 2.205 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.313 MJ
• Weight: 24.298 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 61810-1 || EN 61373 || GL || UL 508

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143604185
• Customs tariff number Sales Organisation Germany: 85364900990
