Features

• PUR, halogen-free
• Suitable for drag chains
• Silicon- and PVC-free
• High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
• High chemical resistance

Approvals

• Underwriters Laboratories Inc., UL, E519602, UL 2238

Specifications

Technical Data

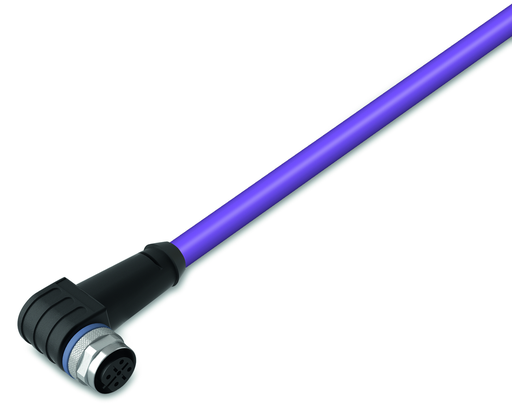

• Connection type: M12 socket - Free end
• Pole No.: 5
• Cable connection direction to mating direction: 90 °
• Connector interface coding (cable/adapter) 1 1: B-coded
• Cable length: 20 m
• Communication/fieldbus: PROFIBUS
• Operating voltage: ≤ 300 V
• Operating current: 4 A
• Rated surge voltage: 2 kV
• Insulation resistance: > 2500 MΩ/km
• Conductor resistance: Max. 55 Ω/km; Loop resistance: max. 110 Ω/km

Mechanical Data

• Bending radius: > 10 x cable Ø (flexible use); > 5 x cable Ø in drag chain (fixed installation)
• Bending cycles: 1 Mio.
• Drag chain suitability: Yes
• Sheathed cable diameter: 7.3 … 7.9 mm
• Type code: LI02YS-(ST)CB11Y 1X(2X0.34SQMM)
• Shield: Shielding braid, (approx. 5.90 mm Ø), tinned CU-ETP1, coverage 85 % ± 5 %
• Conductor design: Bare copper wire (19 x 0.15 mm)
• Conductor insulation: PE (halogen-free); Filler: PP yarn
• Housing material: TPU/TPU, black (~ RAL 9005)
• Tightening torque: 1 Nm
• Weight: 1400.000 g
• Color: Violet

Environmental Requirements

• Surrounding air (operating) temperature (dynamic): -25 … +60 °C
• Surrounding air (operating) temperature (static): -50 … +60 °C
• Protection type: IP67
• Pollution degree (5): 3/2 per IEC 60664-1
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454521585
• Customs tariff number Sales Organisation Germany: 85444290900
