Features

• PUR, halogen-free
• Suitable for drag chains
• Good resistance to microbes, hydrolysis, oil, chemicals and UV radiation.
• Good chemical resistance.
• Cable used: UL listed

Specifications

Technical Data

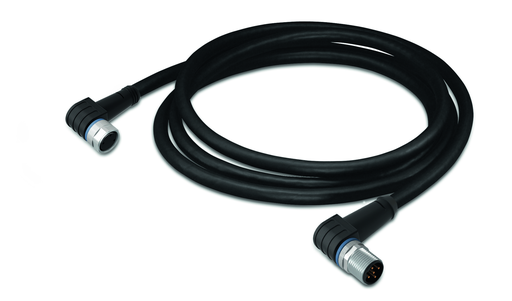

• Connection type: M8 socket - M12 plug
• Pole No.: 4
• Cable connection direction to mating direction: 90 °
• Cable connection direction to mating direction (2): 90 °
• Connector interface coding (cable/adapter) 2 1: A-coded
• Cable length: 2 m
• Operating voltage: AC/DC 60 V
• Operating current: 4 A
• Rated surge voltage: 1.5 kV

Mechanical Data

• Bending cycles: 2 Mio.
• Drag chain suitability: Yes
• Sheathed cable color: Black
• Sheathed cable diameter: 3.9 … 4.3 mm
• Sheath material: Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
• Halogen-free: Yes
• Housing material: Polyurethane (PUR)
• Contact material: CuSn
• Contact plating: CuNi/Au
• Tightening torque: 0.6 … 1 Nm
• Weight: 74.500 g

Environmental Requirements

• Surrounding air (operating) temperature (dynamic): -25 … +90 °C
• Surrounding air (operating) temperature (static): -50 … +90 °C
• Protection type: IP67
• Pollution degree (5): 3 per VDE 0110
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918976008
• Customs tariff number Sales Organisation Germany: 85444290900
