Features

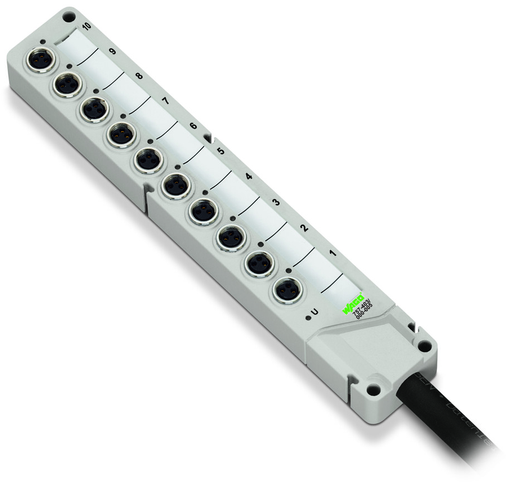

• M8 sensor/actuator box, 8-way
• 3-pole (1 signal per contact)
• Cable length: 5 and 10 m
• Green LED operating indicator
• Yellow LED status indicator
• incl. marker strips (WMB markers can also be used)
• incl. M8 protective caps (2 pcs)

Approvals

• UL International Germany GmbH, UL, E175199 Sec.5, UL 508

Specifications

Technical Data

• Contact resistance (max.): 0.01 Ω
• Supply voltage: 10 … 30 VDC; Rated voltage: 32 V ~ rms
• Current carrying capacity (signal connections): 2 A
• Current carrying capacity (supply connections): 6 A
• Rated value of electrical isolation: 500 V
• Functionally separated potential groups: Kontakt/Kontakt
• Insulation resistance: 1000 MΩ
• Signal characteristic: PNP
• Indicators: LED yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status

Connection Data

• Connection technology: inputs/outputs: 8 x M8 socket; 3-pole
• Connection technology: trunk cable: 1 x Fixed connecting cable
• Length of connecting cable: 10 m
• Strip length: 100 mm / 3.94 inch
• Wire colors: White, green, yellow, gray, pink, red, black, purple, brown, blue
• Cable design: Wire cross-section: 0.34 mm²; Wire cross-section 2: 0.75 mm²

Physical Data

• Width: 30 mm / 1.181 inch
• Height: 20 mm / 0.787 inch
• Depth: 152 mm / 5.984 inch

Mechanical Data

• Mounting type: Screw mount

Material Data

• Housing material: PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
• Halogen-free: Yes
• Sheathed cable diameter: 7.4 mm
• Bending radius: 10 x cable diameter (min.) for flexible application
• Material properties of the connections: Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles
• Sheath material: PUR
• Sheathed cable color: Black
• Encapsulation: Fully encapsulated with conformal coating (UL 94 V0)

Environmental Requirements

• Surrounding air temperature (operation): -25 … 80 °C
• Surrounding air (operating) temperature (dynamic): -5 … +80 °C
• Surrounding air (operating) temperature (static): -40 … +80 °C
• Protection type: IP68
• Note on protection type: 72 h at a depth of 1 m under water per EN 60529 in the fully locked position with its plugs or protective caps
• Pollution degree (5): 3 per VDE 0110
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: Per IEC 60068-2-27

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918978644
• Customs tariff number Sales Organisation Germany: 85366990990
