Features

• PUR RD, halogen-free
• CAT 5e ES
• Suitable for drag chains
• Silicon- and CFC-free
• High resistance to microbes, hydrolysis, oil, ozone, chemicals and UV radiation
• Cable used: UL listed

Approvals

• Underwriters Laboratories Inc., UL, E345416, UL 1863

Specifications

Technical Data

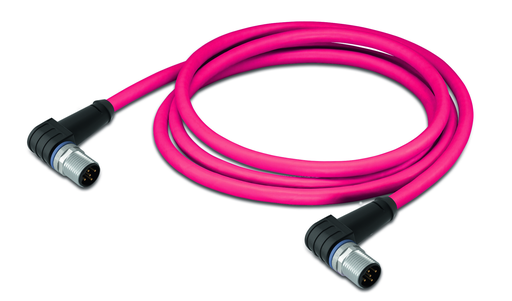

• Connection type: M12 plug - M12 plug
• Pole No.: 4
• Cable connection direction to mating direction: 90 °
• Cable connection direction to mating direction (2): 90 °
• Connector interface coding (cable/adapter) 1 1: D-coded
• Connector interface coding (cable/adapter) 2 1: D-coded
• Cable length: 2 m
• Communication/fieldbus: Sercos
• Operating voltage: 250 V
• Operating current: 4 A
• Rated surge voltage: 2 kV
• Contact resistance: 10 mΩ
• Insulation resistance: ≥ 5 x 108 Ω/km
• Conductor resistance: < 57 Ω/km

Mechanical Data

• Bending radius: Single: 4 x cable diameter (min.); Multiple: 8 x cable diameter (min.)
• Bending cycles: 3 Mio.
• Drag chain suitability: Yes
• Sheathed cable diameter: 6.3 … 6.7 mm
• Type code: 02YH(ST)C11Y 2x2x0.75/1.5-100 LI RT VZN FRNC, shielded
• Shield: Overlapped aluminum-laminated foil and tinned copper braid, optical coverage approx. 85 %
• Conductor design: Bare copper wire (7 x 0.25 mm)
• Conductor insulation: PE (halogen-free)
• Housing material: TPU/TPU, black (~ RAL 9005)
• Tightening torque: 1 Nm
• Weight: 160.000 g
• Color: Red

Environmental Requirements

• Surrounding air (operating) temperature (dynamic): -40 … +70 °C
• Surrounding air (operating) temperature (static): -40 … +70 °C
• Protection type: IP67
• Pollution degree (5): 3/2 per IEC 60664-1
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821591238
• Customs tariff number Sales Organisation Germany: 85444290900
