WAGO 783-992

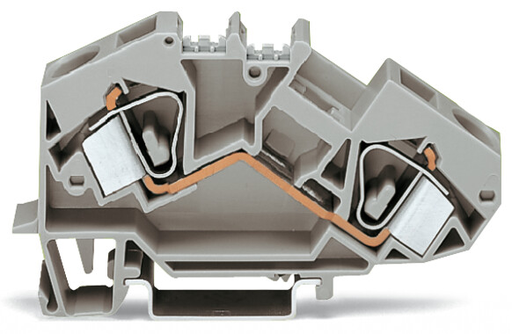

783-992 WAGO 783-992

WAGO 783-992
Part # 783-992
Manufacturer WAGO
Condition New
Price: $ 6.66

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-CON TRM BLK 16MM LT GREY
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-Conductor Ex e II through terminal block suitable for Ex e applications

Features

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7456/A1, EN 60947
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • DEKRA Certification B.V., CSA, 1833819, C22.2 No. 158
  • DEKRA Certification B.V., KEMA/KEUR, 2187239.03, EN 60947
  • Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
  • Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 00 ATEX 3131 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb
  • UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1

Ex Information

  • Rated voltage EN (Ex e II): 750 V
  • Rated current (Ex e II): 68 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
  • Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
  • Strip length: 16 … 17 mm / 0.63 … 0.67 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 88.5 mm / 3.484 inch
  • Depth from upper edge of DIN-rail: 43.5 mm / 1.713 inch

Mechanical Data

  • Design: Angled
  • Mounting type: DIN-35 rail
  • Marking level: Center marking

Material Data

  • Color: Light gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.490 MJ
  • Weight: 32.204 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4017332627313
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
