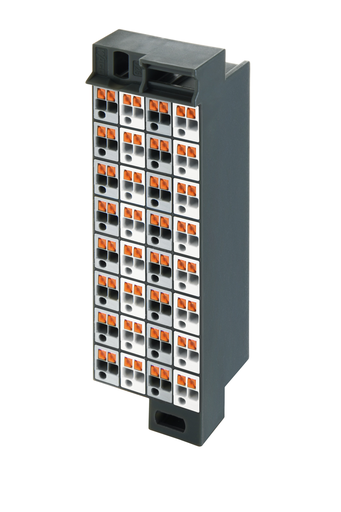

Features

Approvals

• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL-7623, EN 60998
• DEKRA Certification B.V., KEMA/KEUR, 71-100850, EN 60998
• DEKRA Certification B.V., CSA, 1101143, C22.2

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 10 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection type (1): Page 1
• Connection technology: Push-in CAGE CLAMP®
• Number of connection points: 2
• Actuation type: Operating tool || Push-button
• Connectable conductor materials: Copper
• Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm² / 22 … 18 AWG
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
• Strip length: 10 mm / 0.39 inch
• Pole No.: 32
• Wiring direction: Front-entry wiring

Connection 2

• Connection type 2: Page 2
• Number of connection points 2: 2
• Solid conductor 2: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor 2: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule 2: 0.25 … 1 mm² / 22 … 18 AWG
• Fine-stranded conductor; with uninsulated ferrule 2: 0.25 … 1.5 mm² / 22 … 16 AWG

Physical Data

• Width: 34.6 mm / 1.362 inch
• Height: 131.9 mm / 5.193 inch
• Depth: 33.4 mm / 1.315 inch

Mechanical Data

• Marking: Plain
• Design: Slimline

Material Data

• Color: Dark gray
• Module color: White/gray
• Fire load: 1.440 MJ
• Weight: 108.760 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143293082
• Customs tariff number Sales Organisation Germany: 85369010000
