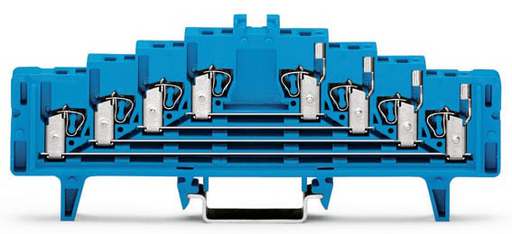

WAGO 727-234

727-234 WAGO 727-234

WAGO 727-234
Part # 727-234
Manufacturer WAGO
Condition New
Price: $ 17.23

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
DIN MTD 4 LEVEL T.B. W/O LOCK BLUE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
4-Level terminal block for matrix patching without locking clips suitable for Ex i applications

Features

Approvals

  • DEKRA Certification B.V., CCA, NTR NL 7485, EN 60947
  • DEKRA Certification B.V., CSA, 70048845, C22.2 No. 158
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., KEMA/KEUR, 2192101.01, EN 60947

Specifications

Notes

  • Safety information 1: 60V Ex i application = peak value (table 4, EN 50020)
  • Safety information 2: When approved by the manufacturer’s authorized inspection representative

Ratings Per Iec/En

  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated current: 12 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Strip length: 8 … 10 mm / 0.31 … 0.39 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 7.62 mm / 0.3 inch
  • Height: 126 mm / 4.961 inch
  • Depth from upper edge of DIN-rail: 44.5 mm / 1.752 inch

Mechanical Data

  • Marking: Plain
  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center marking

Material Data

  • Color: Blue
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.591 MJ
  • Weight: 33.000 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454189778
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
