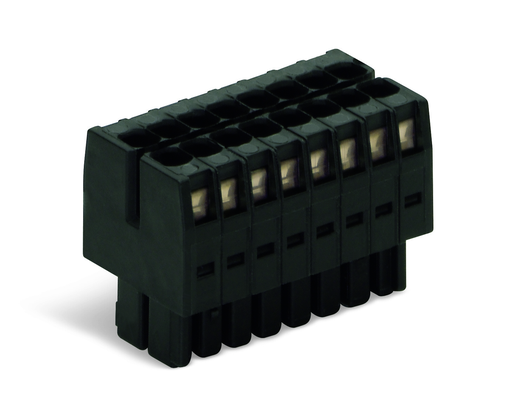

Features

• Universal connection for all conductor types
• Unique, compact, double-row connector system for conductor cross-sections up to 1.5 mm2
• High-density, wire-to-board connections in very confined spaces
• Centered strain relief plate anchors conductors, while acting as convenient connection and disconnection handle. It also provides easy access to operating slots – even when wired.
• Coding fingers provide 100% protection against mismating

Approvals

• DEKRA Certification B.V., CCA, NL-30980, IEC 61984
• DEKRA Certification B.V., CCA, 2169947.01, EN 61984
• Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 80 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 250 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 10 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group C): 50 V
• Rated current UL (Use Group C): 10 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 10 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1 mm²
• Strip length: 6 … 7 mm / 0.24 … 0.28 inch
• Pole No.: 36
• Conductor entry direction to mating direction: 0 °

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 64.5 mm / 2.539 inch
• Height: 54.2 mm / 2.134 inch
• Depth: 16 mm / 0.63 inch

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor
• Mismating protection: Yes
• Locking of plug-in connection: Without
• Strain relief: Strain relief plate

Material Data

• Color: Black
• Material group: II
• Insulation material: Glass fiber-reinforced polyamide (PA66 GF)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.350 MJ
• Weight: 21.020 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4050821152545
• Customs tariff number Sales Organisation Germany: 85366990990
