Features

• THR male headers for reflow soldering in SMT applications

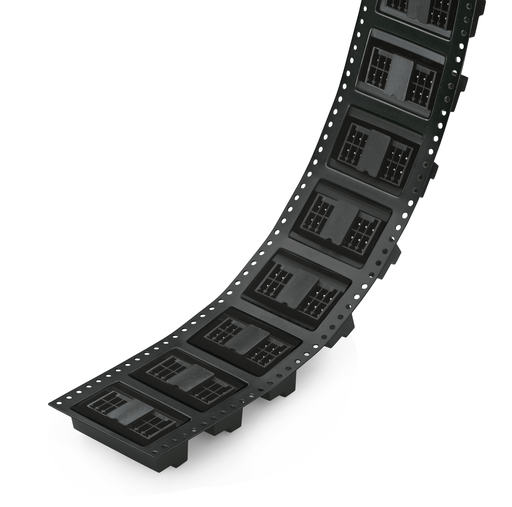

• Available in tape-and-reel packaging for automated pick-and-place PCB assembly
• Separated pin slots prevent damage and make the headers touch-proof when unplugged
• 100% protected against mismating
• Coding option available

Approvals

• Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || Other solder pin lengths || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 80 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 250 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 10 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 150 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group C): 50 V
• Rated current UL (Use Group C): 10 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 150 V
• Rated current CSA (Use Group B): 12 A

Connection 1

• Pole No.: 30

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 60.6 mm / 2.386 inch
• Height: 15.9 mm / 0.626 inch
• Height from the surface: 13.5 mm / 0.531 inch
• Depth: 13.3 mm / 0.524 inch
• Solder pin length: 2.4 mm
• Solder pin dimensions: 0.8 x 0.8 mm
• Plated through-hole diameter (THR): 1.3 (+0.1) mm
• Reel diameter of tape-and-reel packaging: 330 mm
• Tape width: 88 mm

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For PCB
• Mismating protection: Yes
• Mating direction to the PCB: 90 °
• Locking of plug-in connection: Locking lever

Pcb Contact

• PCB Contact: THR
• Solder pin arrangement: Over the entire male connector (in-line)
• Number of solder pins per potential: 1

Material Data

• Color: Black
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 7.610 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821308973
• Customs tariff number Sales Organisation Germany: 85366990990
