Features

Approvals

• DEKRA Certification B.V., CSA, 1466354, C22.2
• Lloyds Register, LR, 96/20035 (E5), IEC 61984

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Rated voltage (III/2): 250 V
• Rated surge voltage (III/2): 2.5 kV
• Rated current: 0.5 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 12 … 13 mm / 0.47 … 0.51 inch

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 5 mm / 0.197 inch
• Height: 14.3 mm / 0.563 inch
• Depth: 44.45 mm / 1.75 inch

Mechanical Data

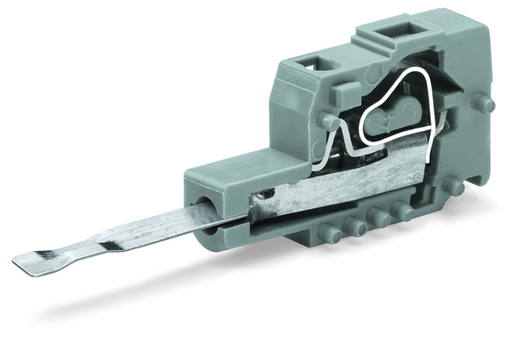

• Application: Testing wired terminal blocks with 0.75 …1.5 mm² “f-st” or 0.5 mm² “sol.” conductors
• Test contact length: 18 mm
• Suitable: For 280, 736, 737, 738, 780 Series

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.024 MJ
• Weight: 1.900 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332315425
• Customs tariff number Sales Organisation Germany: 85366990990
