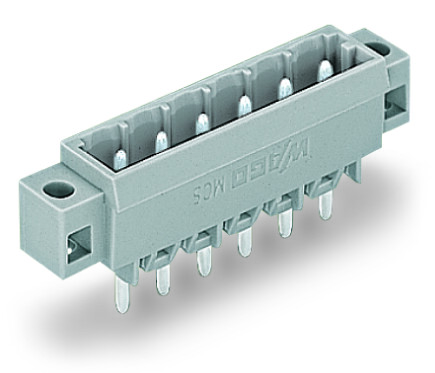

Features

• Horizontal or vertical PCB mounting via straight or angled solder pins
• 1.2 x 1.2 mm solder pins allow nominal current up to 16 A, enhancing stability of shorter headers
• With coding fingers

Approvals

• DEKRA Certification B.V., CSA, LR 18677-25, C22.2
• American Bureau of Shipping, ABS, 19-HG1869876-PDA
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• Bureau Veritas S.A., BV, 11915/D0 BV, IEC 60998
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
• DEKRA Certification B.V., CB, NL-39756, IEC 61984
• Underwriters Laboratories Inc., UL, E45171, UL 1977

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || 3.8 mm pin projection for male headers with straight solder pins || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 16 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 15 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 15 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Pole No.: 5

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 37.8 mm / 1.488 inch
• Height: 17 mm / 0.669 inch
• Height from the surface: 12 mm / 0.472 inch
• Depth: 8.4 mm / 0.331 inch
• Solder pin length: 5 mm
• Solder pin dimensions: 1.2 x 1.2 mm
• Drilled hole diameter with tolerance: 1.7 (+0.1) mm

Mechanical Data

• Mounting type: Mounting flange || Feed-through mounting || Panel mounting

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For PCB
• Mismating protection: No
• Mating direction to the PCB: 90 °
• Locking of plug-in connection: Without

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire male connector (in-line)
• Number of solder pins per potential: 1

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.041 MJ
• Weight: 2.318 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454644802
• Customs tariff number Sales Organisation Germany: 85366990990
