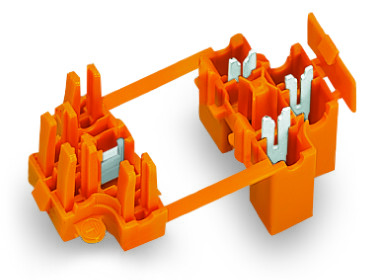

Features

• Sockets with IDC for tapping individual conductors without stripping
• Three-pole sockets automatically cut “live” conductors (e.g., door switches in elevator shafts)
• Sockets available with additional mounting flanges

Approvals

• DEKRA Certification B.V., CSA, LR 18677-43, C22.2 No. 158
• DEKRA Certification B.V., CCA, 2174149.01A, EN 60998
• UL International Germany GmbH, UL, E45172, UL 1059

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated voltage (III/2): 630 V
• Rated surge voltage (III/2): 6 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 6 kV
• Rated current: 10 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 10 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 10 A

Connection 1

• Connection technology: IDC
• Fine-stranded conductor: 0.75 … 1.5 mm² / 18 … 16 AWG
• Pole No.: 3

Physical Data

• Width: 26.5 mm / 1.043 inch
• Height: 27 mm / 1.063 inch
• Depth: 23 mm / 0.906 inch

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor

Material Data

• Color: Orange
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Brass
• Contact plating: Tin-plated
• Fire load: 0.169 MJ
• Weight: 7.064 g

Environmental Requirements

• Limit temperature range: -60 … +85 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4050821778363
• Customs tariff number Sales Organisation Germany: 85366990990
