Features

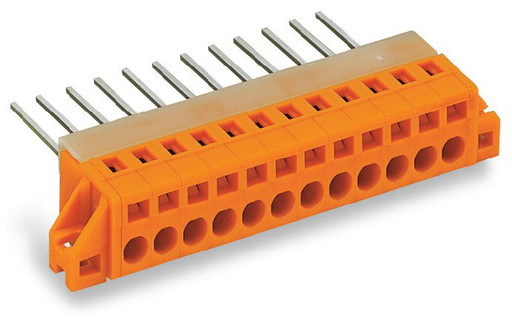

• Feedthrough PCB terminal strips with screwdriver-actuated CAGE CLAMP®
• With flanges for PCB or front-panel mounting – either flush with enclosure or protruding

Approvals

• Lloyds Register, LR, 96/20035 (E5), IEC 61984
• Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Direct marking || Versions without mounting flanges || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 320 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 5 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 5 A
• Rated voltage UL (Use Group C): 150 V
• Rated current UL (Use Group C): 5 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 5 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 5 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Pole No.: 2

Connection 2

• Connection technology 2: Wire-wrap pin

Physical Data

• Pin spacing: 5.08 mm / 0.2 inch
• Width: 25.36 mm / 0.998 inch
• Height: 14.3 mm / 0.563 inch
• Depth: 15.5 mm / 0.61 inch

Mechanical Data

• Housing sheet thickness: 1.5 … 1.5 mm / 0.059 … 0.059 inch
• Mounting type: Mounting flange || Feed-through mounting || Panel mounting

Material Data

• Color: Orange
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.072 MJ
• Weight: 3.970 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918270038
• Customs tariff number Sales Organisation Germany: 85369010000
