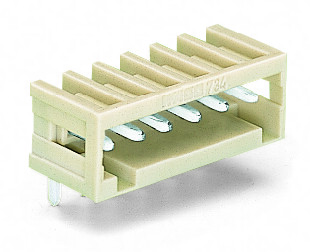

Header right angle solder pin, 1 x 1 mm / 0.039 x 0.039 in 13 pole
Features
Horizontal or vertical PCB mounting via straight or angled solder pins
100% protected against mismating; only mating halves with the same number of poles can be connected together
Coding option available
Specifications
Notes
Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:: Other pole numbers || 3.8 mm pin projection for male headers with straight solder pins || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/
