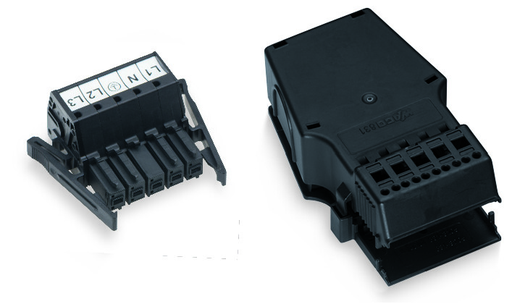

Features

• protection against mismating eliminates errors
• saves time, since no wiring is required at the construction site
• with A coding for use in many general mains applications
• exact dimensions
• quick replacement of defective units during ongoing operation

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-102292, EN 61535
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., KEMA/KEUR, 71-116057, EN 61984
• DEKRA Certification B.V., CB, NL-61360/M1, IEC 61984

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 400 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 35 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool || Push-in
• Nominal cross-section: 6 mm²
• Solid conductor: 0.5 … 6 mm² / 20 … 8 AWG
• Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Fine-stranded conductor: 0.5 … 6 mm² / 20 … 8 AWG
• Strip length: 13 mm / 0.51 inch
• Pole No.: 5
• Connectable sheathed cable diameter: 13 … 18 mm
• Conductor entry direction to mating direction: 0 °

Physical Data

• Pin spacing: 7.62 mm / 0.3 inch
• Width: 64 mm / 2.52 inch
• Height: 27.55 mm / 1.085 inch
• Depth: 41.9 mm / 1.65 inch

Mechanical Data

• Application: General mains applications
• Coding: A
• Marking: L1 N ⏚ L2 L3
• Potentialkennzeichnung: L1 N ⏚ L2 L3
• Mating force of a plug-in connection: Approx. 30 … 70 N (depending on number of poles)
• Retention force of a plug-in connection: Locked: > 80 N
• Unmating force of a plug-in connection: Unlocked: approx. 30 … 70 N (depending on number of poles)
• Number of mating cycles: 100, without resistive load
• Protection class: IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor
• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking lever: No
• Locking of plug-in connection: Locking lever
• Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
• Strain relief: Strain relief housing

Material Data

• Color: Black
• Insulation material: Polyamide (PA66)
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 0.486 MJ
• Weight: 76.704 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4055143500739
• Customs tariff number Sales Organisation Germany: 85366990990
