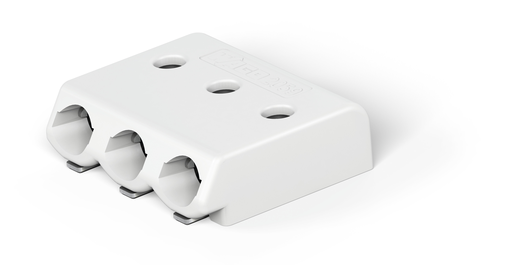

Features

• SMD PCB terminal blocks with PUSH WIRE® connection technology
• Push-in termination of solid conductors
• Easy conductor removal via operating tool
• Height of just 2.7 mm
• Assemble terminal blocks without pole loss
• Available in tape-and-reel packaging for automated assembly

Approvals

• DEKRA Certification B.V., CCA, 71-103560, EN 60947
• Underwriters Laboratories Inc., UL, E45171, UL 1977
• DEKRA Certification B.V., CCA, NTR NL-7680, EN 60947
• DEKRA Certification B.V., KEMA/KEUR, 71-106226, EN 60838
• DEKRA Certification B.V., CCA, NTR NL-7720, EN 60838

Specifications

Notes

• Note: Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
• Recommendation: Recommendation for stencil:Material thickness: 150 µm; Pattern layout identical to solder pad layout

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 63 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 3 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Rated voltage UL 1977: 250 V
• Rated current UL 1977: 3 A

Connection 1

• Connection technology: PUSH WIRE®
• Actuation type: Operating tool
• Solid conductor: 0.14 … 0.34 mm² / 26 … 22 AWG
• Note (conductor cross-section): For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using an operating tool.
• Strip length: 4 … 5.5 mm / 0.16 … 0.22 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 3

Connection 2

• Solid conductor 2: 0.5 mm² / 20 AWG
• Note (conductor cross-section) 2: No reconnection of smaller conductor cross-sections (0.5 mm²/20 AWG)
• Strip length 2: 6 … 7.5 mm / 0.24 … 0.3 inch

Physical Data

• Pin spacing: 3 mm / 0.118 inch
• Width: 8.9 mm / 0.35 inch
• Height: 2.7 mm / 0.106 inch
• Depth: 7.9 mm / 0.311 inch
• Reel diameter of tape-and-reel packaging: 330 mm
• Tape width: 16 mm

Pcb Contact

• PCB Contact: SMD
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: White
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 0.244 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4055143082693
• Customs tariff number Sales Organisation Germany: 85369010000
