WAGO 2061-1603/998-404

2061-1603/998-404 WAGO 2061-1603/998-404

WAGO 2061-1603/998-404
Part # 2061-1603/998-404
Condition New
Price: $ 2.11

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

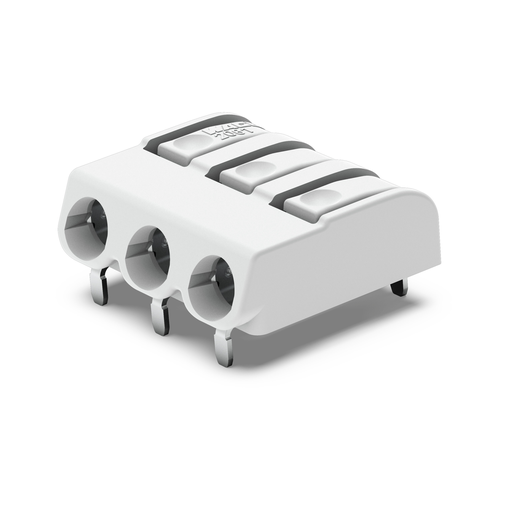

THR PCB terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
THR PCB terminal block

Features

  • THR PCB terminal blocks with Push-in CAGE CLAMP® connection technology and push-buttons
  • Push-in termination of solid and ferruled conductors
  • Convenient termination/removal of fine-stranded conductors via push-buttons
  • Just 5.6 mm tall
  • Available in tape-and-reel packaging for automated assembly
  • Also suitable for wave soldering
  • Assemble terminal blocks without pole loss

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7773, EN 60947-7-4
  • DEKRA Certification B.V., CCA, NTR NL-7721, EN 60838
  • DEKRA Certification B.V., KEMA/KEUR, 71-106232, EN 60838
  • DEKRA Certification B.V., CCA, 71-110254, EN 60947-7-4

Specifications

Notes

  • Note: Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
  • Recommendation: Recommendation for stencil:150 µm material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 17.5 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 0.75 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.5 … 0.75 mm²
  • Strip length: 7 … 10 mm / 0.28 … 0.39 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 3

Physical Data

  • Pin spacing: 6 mm / 0.24 inch
  • Width: 17.7 mm / 0.697 inch
  • Height: 8 mm / 0.315 inch
  • Height from the surface: 5.6 mm / 0.22 inch
  • Depth: 15.2 mm / 0.598 inch
  • Solder pin length: 2.4 mm
  • Solder pin dimensions: 1.2 x 0.35 mm
  • Plated through-hole diameter (THR): 1.5 (+0.1) mm
  • Reel diameter of tape-and-reel packaging: 330 mm
  • Tape width: 24 mm

Pcb Contact

  • PCB Contact: THR
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: White
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 1.630 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4055143274753
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
