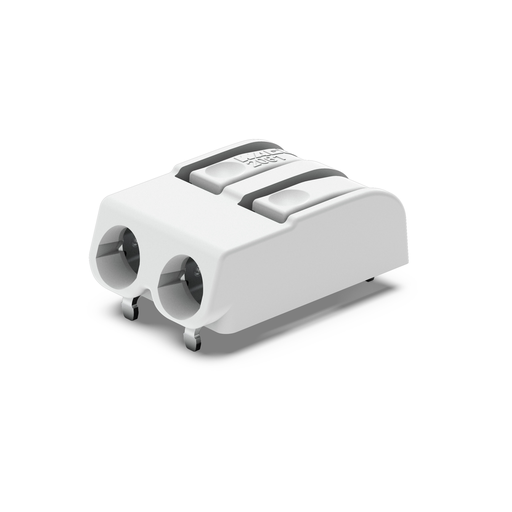

Features

• THR PCB terminal blocks with Push-in CAGE CLAMP® connection technology and push-buttons
• Push-in termination of solid and ferruled conductors
• Convenient termination/removal of fine-stranded conductors via push-buttons
• Just 5.6 mm tall
• Available in tape-and-reel packaging for automated assembly
• Also suitable for wave soldering
• Assemble terminal blocks without pole loss

Approvals

• DEKRA Certification B.V., CCA, 71-110254, EN 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-106232, EN 60838
• DEKRA Certification B.V., CCA, NTR NL-7773, EN 60947-7-4
• DEKRA Certification B.V., CCA, NTR NL-7721, EN 60838

Specifications

Notes

• Note: Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
• Recommendation: Recommendation for stencil:150 µm material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 17.5 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 0.75 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.5 … 0.75 mm²
• Strip length: 7 … 10 mm / 0.28 … 0.39 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 2

Physical Data

• Pin spacing: 6 mm / 0.24 inch
• Width: 11.7 mm / 0.461 inch
• Height: 7.1 mm / 0.28 inch
• Height from the surface: 5.6 mm / 0.22 inch
• Depth: 15.2 mm / 0.598 inch
• Solder pin length: 1.5 mm
• Solder pin dimensions: 1.2 x 0.35 mm
• Plated through-hole diameter (THR): 1.5 (+0.1) mm
• Reel diameter of tape-and-reel packaging: 330 mm
• Tape width: 24 mm

Pcb Contact

• PCB Contact: THR
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: White
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 1.047 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4055143274678
• Customs tariff number Sales Organisation Germany: 85369010000
