Features

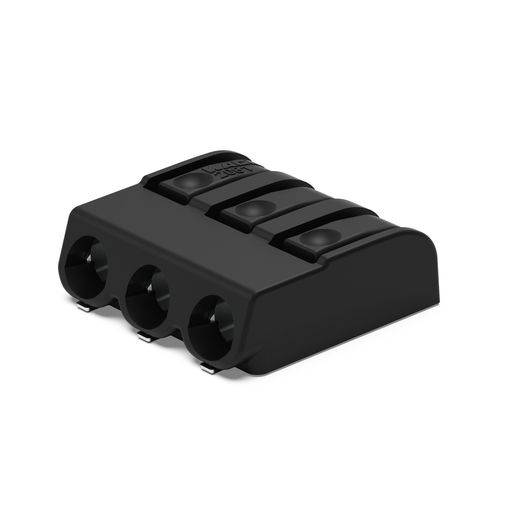

• SMD PCB terminal blocks with Push-in CAGE CLAMP® connection technology and push-buttons
• Just 5.6 mm tall
• Push-in termination of solid and ferruled conductors
• Push-button for easy connection and disconnection of all conductor types
• Available in tape-and-reel packaging for automated assembly

Approvals

• DEKRA Certification B.V., CCA, NTR NL-7721, EN 60838
• DEKRA Certification B.V., CCA, 71-110254, EN 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-106232, EN 60838
• DEKRA Certification B.V., CCA, NTR NL-7773, EN 60947-7-4

Specifications

Notes

• Note: Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
• Recommendation: Recommendation for stencil:150 µm material thickness; Pattern layout identical to solder pad layout

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 17.5 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 0.75 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.5 … 0.75 mm²
• Strip length: 7 … 10 mm / 0.28 … 0.39 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 3

Physical Data

• Pin spacing: 6 mm / 0.24 inch
• Width: 17.7 mm / 0.697 inch
• Height: 5.6 mm / 0.22 inch
• Height from the surface: 5.6 mm / 0.22 inch
• Depth: 15.8 mm / 0.622 inch
• Reel diameter of tape-and-reel packaging: 330 mm
• Tape width: 24 mm

Pcb Contact

• PCB Contact: SMD
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Black
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 1.610 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143251105
• Customs tariff number Sales Organisation Germany: 85369010000
