Features

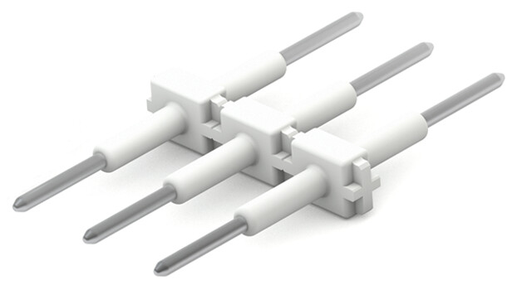

• Board-to-board links simplify in-line assembly of LED modules
• Easy push-in connection and disconnection without push-button actuation

Approvals

• DEKRA Certification B.V., CCA, 71-110254, EN 60947-7-4
• DEKRA Certification B.V., CCA, NTR NL-7721, EN 60838
• DEKRA Certification B.V., CCA, NTR NL-7773, EN 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-106232, EN 60838

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 9 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

• Pole No.: 3

Physical Data

• Pin spacing: 6 mm / 0.236 inch
• Width: 17.7 mm / 0.697 inch
• Height: 2.5 mm / 0.098 inch
• Depth: 30 mm / 1.181 inch

Mechanical Data

• Mating cycles (max.): 10
• Number of mating cycles: Max. 10 connections/disconnections
• Suitable: For SMD PCB terminal blocks (2061 Series)

Material Data

• Color: White
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Silver-plated
• Fire load: 0.000 MJ
• Weight: 0.850 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143656801
• Customs tariff number Sales Organisation Germany: 85369010000
