Features

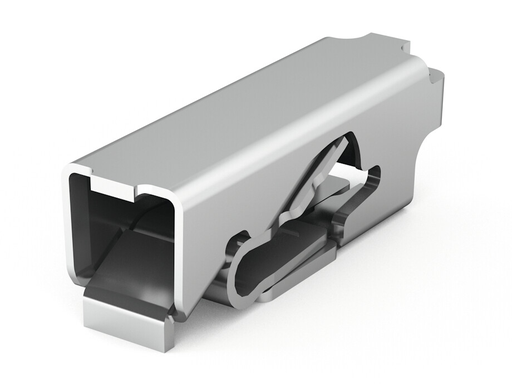

• SMD PCB terminal block with PUSH WIRE® connection technology
• Push-in termination of solid conductors
• Height of just 2.7 mm
• Available in tape-and-reel packaging for automated assembly

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-102159, EN 60998
• DEKRA Certification B.V., CB, NL-49896 IEC 60947-7-4:2013, EN 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-102154, EN 60947-7-4

Specifications

Notes

• Safety information 1: NOTE: Terminal block without insulation housing! Protection against accidental contact must be provided at voltages higher than low voltages (e.g., SELV/PELV) for the relevant application.
• Note: The ratings are based on an example pin spacing of 6 mm.The layout must meet the requirements of the insulation coordination standard EN/IEC 60664-1 and applicable end product standards.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 9 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 9 A

Connection 1

• Connection technology: PUSH WIRE®
• Actuation type: Push-in
• Solid conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
• Strip length: 7.5 … 9.5 mm / 0.3 … 0.37 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 1

Physical Data

• Pin spacing: 6 mm / 0.236 inch
• Width: 2.3 mm / 0.091 inch
• Height: 2.7 mm / 0.106 inch
• Depth: 8 mm / 0.315 inch
• Reel diameter of tape-and-reel packaging: 330 mm
• Tape width: 16 mm

Pcb Contact

• PCB Contact: SMD
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 1

Material Data

• Color: Silver-colored
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 0.140 g

Environmental Requirements

• Limit temperature range: -60 … +120 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4055143665438
• Customs tariff number Sales Organisation Germany: 85369010000
