Features

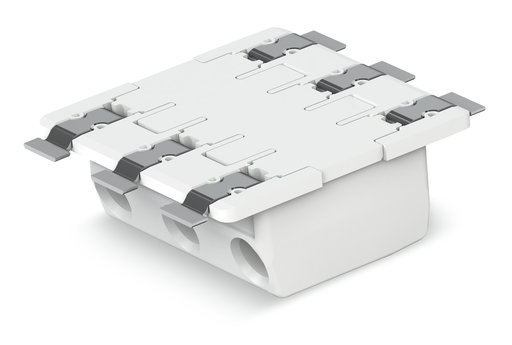

• SMD PCB terminal block with Push-in CAGE CLAMP® connection for back-side wiring of LED modules
• Low profile of just 1.1 mm on the module’s front side
• Push-in termination of solid conductors
• Insert fine-stranded conductors and remove all conductors via operating tool

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-107965, EN 60947-7-4
• DEKRA Certification B.V., CB, NL-57653, EN 60998
• DEKRA Certification B.V., CB, NL-57652, IEC 60998
• Underwriters Laboratories Inc., UR, E45171, UL 1977
• DEKRA Certification B.V., KEMA/KEUR, 71-107967, EN 60998

Specifications

Notes

• Note: Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
• Variants:: Reel diameter of tape-and-reel packaging: 381 mm || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1 || IEC/EN 60664-1
• Ratings (note): Electrical data for FR4 PCB type
• Nominal voltage (III/3): 320 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 9 A
• Ratings (note) 2: Electrical data for metal-core PCBs
• Rated voltage (III/3) 2: 200 V
• Rated surge voltage (III/3) 2: 4 kV
• Rated voltage (III/2) 2: 320 V
• Rated surge voltage (III/2) 2: 4 kV
• Rated voltage (II/2) 2: 500 V
• Rated surge voltage (II/2) 2: 4 kV
• Rated current 2: 9 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 9 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
• Fine-stranded conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
• Strip length: 8 … 10 mm / 0.31 … 0.39 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 3

Physical Data

• Pin spacing: 6.5 mm / 0.256 inch
• Width: 15.8 mm / 0.622 inch
• Height: 7.45 mm / 0.293 inch
• Depth: 22.2 mm / 0.874 inch
• Reel diameter of tape-and-reel packaging: 330 mm
• Tape width: 44 mm

Mechanical Data

• Design: With cover
• Mounting type: Through-board

Pcb Contact

• PCB Contact: SMD
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: White
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.039 MJ
• Weight: 1.995 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4055143652803
• Customs tariff number Sales Organisation Germany: 85369010000
