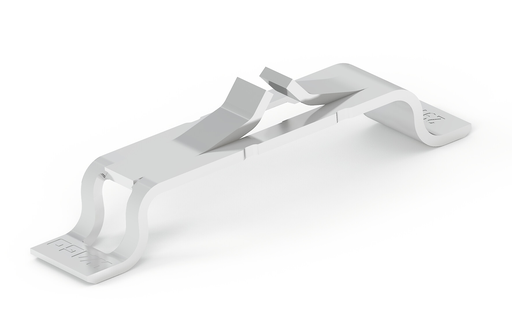

Features

• For vertical wiring
• Wiring performed on the back of the LED module simplifies lighting manufacturing
• Low installation height minimizes on-board LED shadowing
• Compact design provides uniform light distribution
• An economical alternative to wire soldering
• For manual and automated wiring systems

Approvals

• DEKRA Certification B.V., CB, NL-57046, IEC 60998
• Underwriters Laboratories Inc., cURus, E45171, UL 1977
• DEKRA Certification B.V., KEMA/KEUR, 71-107567, EN 60998

Specifications

Notes

• Note: Terminal block without insulation housing!Protection against accidental contact must be provided at voltages higher than low voltages(e.g., SELV/PELV) for the relevant application.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (II/2): 500 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 9 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 9 A

Connection 1

• Connection technology: PUSH WIRE®
• Actuation type: Push-in
• Solid conductor: 0.34 … 0.75 mm² / 20 … 18 AWG
• Strip length: 3.7 mm / 0.15 inch
• Conductor connection direction to PCB: 90 °
• Pole No.: 1

Physical Data

• Width: 3 mm / 0.118 inch
• Height: 3.9 mm / 0.154 inch
• Depth: 17.5 mm / 0.689 inch
• Reel diameter of tape-and-reel packaging: 330 mm
• Tape width: 24 mm

Pcb Contact

• PCB Contact: SMD
• Solder pin arrangement: In-line
• Number of solder pins per potential: 2

Material Data

• Color: Silver-colored
• Flammability class per UL94: V0
• Clamping spring material: Copper alloy
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 0.160 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4055143607636
• Customs tariff number Sales Organisation Germany: 85369010000
