Features

• Universal connection of all conductor types
• Simple, push-in termination of solid and ferruled conductors
• Easy-to-use design does not require special tools
• Ability to wire while mated or unmated
• Testing parallel to conductor entry – tip contact
• Also available with gripping plates
• Integrated locking latches prevent accidental disconnection

Approvals

• Underwriters Laboratories Inc., UL, E45171, UL 1977
• DEKRA Certification B.V., CSA, 2362521, C22.2 No. 158
• DEKRA Certification B.V., CB, NL-49736/A1, IEC 61984
• DEKRA Certification B.V., KEMA/KEUR, 71-102260 REV.1, EN 61984
• DEKRA Certification B.V., CSA, 2362521, C22.2
• Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

• Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 160 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 10 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Pole No.: 8

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 28 mm / 1.102 inch
• Height: 34 mm / 1.339 inch
• Depth: 12.4 mm / 0.488 inch

Mechanical Data

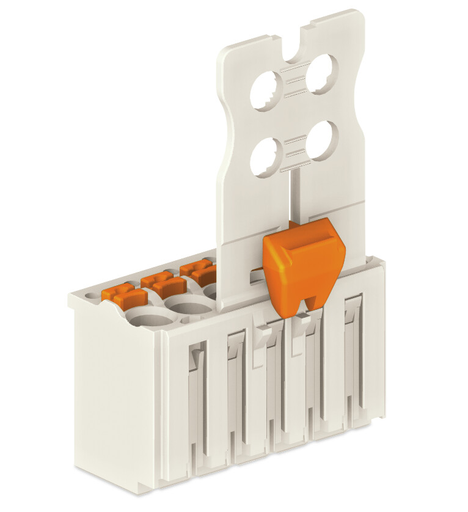

• Design: With gripping plate and sliding connector release

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor
• Mismating protection: No
• Locking of plug-in connection: Without

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.020 MJ
• Weight: 3.912 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821411673
• Customs tariff number Sales Organisation Germany: 85366990990
