Features

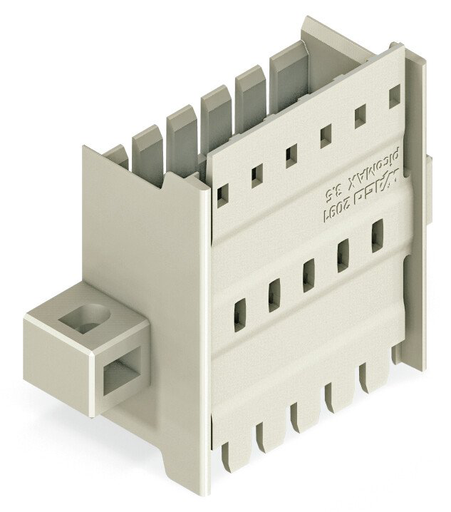

• Male connectors for screw mounting in device or enclosure panels
• External plug-in connection via locking latches to female connectors with conductor terminations
• Internal plug-in connection to female headers with solder pins or female connectors with conductor terminations
• Also available with pre-assembled female connectors on both sides
• Fixing flanges also suitable for panel mounting

Approvals

• DEKRA Certification B.V., CSA, 2362521, C22.2 No. 158
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• Underwriters Laboratories Inc., UL, E45171, UL 1977
• DEKRA Certification B.V., CSA, 2362521, C22.2
• DEKRA Certification B.V., KEMA/KEUR, 71-102260 REV.1, EN 61984
• DEKRA Certification B.V., CB, NL-49736/A1, IEC 61984

Specifications

Notes

• Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 160 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 10 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Connection 1

• Pole No.: 6

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 35 mm / 1.378 inch
• Height: 12.4 mm / 0.488 inch
• Depth: 29 mm / 1.142 inch

Mechanical Data

• Mounting type: Mounting flange || Feed-through mounting || Panel mounting

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For pluggable connector
• Mismating protection: No
• Locking of plug-in connection: Locking latch

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.116 MJ
• Weight: 3.300 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821161875
• Customs tariff number Sales Organisation Germany: 85366990990
