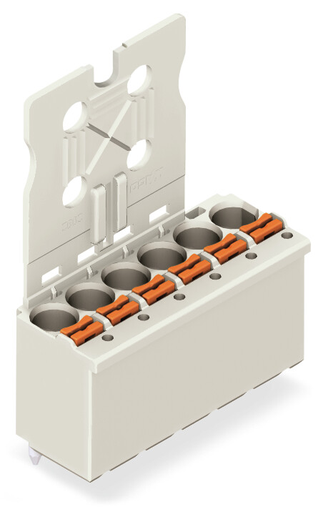

Features

• Universal connection for all conductor types
• Simple, push-in termination of solid and ferruled conductors
• Easy-to-use design does not require special tools
• Ability to wire while mated or unmated
• Integrated test ports for testing parallel to conductor entry
• Custom-installed solder pins

Approvals

• Underwriters Laboratories Inc., UL, E45171, UL 1977
• DEKRA Certification B.V., CSA, 2362521, C22.2
• Underwriters Laboratories Inc., cURus, E45172, UL 1059
• DEKRA Certification B.V., KEMA/KEUR, 71-102261 REV.2, EN 61984
• DEKRA Certification B.V., CB, NL-49737/A1, IEC 61984
• DEKRA Certification B.V., CSA, 2362521, C22.2 No. 158

Specifications

Notes

• Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 16 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Conductor connection direction to PCB: 90 °
• Pole No.: 10

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 50 mm / 1.969 inch
• Height: 49 mm / 1.929 inch
• Depth: 13.4 mm / 0.528 inch
• Solder pin length: 3.6 mm
• Solder pin diameter: 1.4 mm
• Drilled hole diameter with tolerance: 1.6 (+0.1) mm

Mechanical Data

• Design: With gripping plate

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For PCB
• Mismating protection: No
• Mating direction to the PCB: 90 °
• Locking of plug-in connection: Without

Pcb Contact

• PCB Contact: THT

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.065 MJ
• Weight: 12.759 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821163619
• Customs tariff number Sales Organisation Germany: 85366990990
