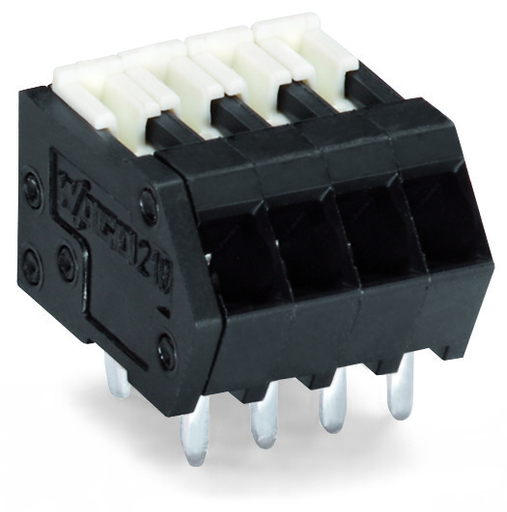

Features

• Terminal strips are just 8.1 mm tall and feature an innovative, locking slide-actuated CAGE CLAMP®
• Several clamping units can be held open simultaneously
• Easily terminate stranded conductors in
• THR soldering provides integration into SMT assembly and soldering processes

Approvals

• DEKRA Certification B.V., CSA, 1565656, C22.2 No. 158

Specifications

Notes

• Variants:: Other pole numbers || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 32 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 6 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Slider
• Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Fine-stranded conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 mm²
• Note (conductor cross-section): Terminating 0.75 mm²/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Conductor connection direction to PCB: 40 °
• Pole No.: 2

Physical Data

• Pin spacing: 2.54 mm / 0.1 inch
• Width: 6.58 mm / 0.259 inch
• Height: 10.9 mm / 0.429 inch
• Height from the surface: 8.1 mm / 0.319 inch
• Depth: 13 mm / 0.512 inch
• Solder pin length: 2.8 mm
• Solder pin dimensions: 0.5 x 0.75 mm
• Plated through-hole diameter (THR): 1.1 (+0.1) mm

Pcb Contact

• PCB Contact: THR
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Black
• Material group: IIIa
• Insulation material: Polyamide (PA46)
• Flammability class per UL94: V2
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.011 MJ
• Weight: 0.728 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4045454341916
• Customs tariff number Sales Organisation Germany: 85369010000
