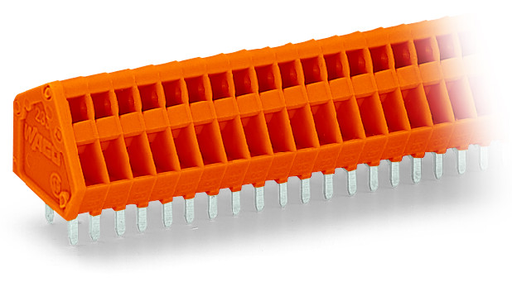

Features

• Compact terminal strips with CAGE CLAMP® connection and screwdriver actuation parallel or perpendicular to conductor entry
• Double solder pins for high mechanical stability
• Custom color combinations

Approvals

• DEKRA Certification B.V., CSA, 1465035, C22.2
• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, 2153951.01, EN 60998
• American Bureau of Shipping, ABS, 19-HG1869876-PDA
• DEKRA Certification B.V., CCA, NTR NL 7786, EN 60947-7-4
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
• DEKRA Certification B.V., KEMA/KEUR, 71-111040, EN 60947-7-4
• DEKRA Certification B.V., CCA, NTR NL 6946, EN 60998

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 63 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 6 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 150 V
• Rated current UL (Use Group B): 4 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 150 V
• Rated current CSA (Use Group B): 4 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Fine-stranded conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 mm²
• Note (conductor cross-section): Terminating 0.75 mm²/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Conductor connection direction to PCB: 30 °
• Pole No.: 8

Physical Data

• Pin spacing: 2.54 mm / 0.1 inch
• Width: 22.62 mm / 0.891 inch
• Height: 15.7 mm / 0.618 inch
• Height from the surface: 11.7 mm / 0.461 inch
• Depth: 12.1 mm / 0.476 inch
• Solder pin length: 4 mm
• Solder pin dimensions: 0.5 x 0.75 mm
• Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Orange
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.044 MJ
• Weight: 2.834 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4045454049997
• Customs tariff number Sales Organisation Germany: 85369010000
