Features

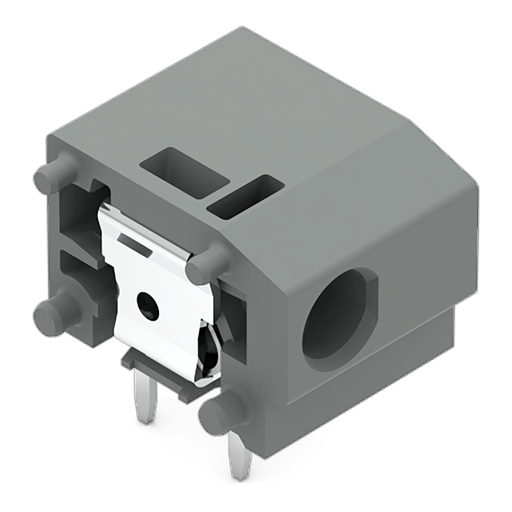

• Low-profile modular PCB terminal blocks with PUSH WIRE® connection for custom terminal strip assemblies
• Push-in termination of solid conductors
• Double solder pins for high mechanical stability
• Conductor removal via screwdriver (2.5 mm blade width)
• Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
• Also available with a test slot

Approvals

• UL International Germany GmbH, UL, E45172

Specifications

Notes

• Variants:: Other colors || Versions for Ex i || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 630 V
• Rated surge voltage (III/3): 8 kV
• Rated voltage (III/2): 1000 V
• Rated surge voltage (III/2): 8 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 8 kV
• Rated current: 17.5 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Ratings Per Csa

• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 15 A

Connection 1

• Connection technology: PUSH WIRE®
• Actuation type: Operating tool
• Solid conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 1

Physical Data

• Pin spacing: 10/10.16 mm / 0.394/0.4 inch
• Width: 11.5 mm / 0.453 inch
• Height: 12.8 mm / 0.504 inch
• Height from the surface: 9.2 mm / 0.362 inch
• Depth: 12.5 mm / 0.492 inch
• Solder pin length: 3.6 mm
• Solder pin dimensions: 0.8 x 0.4 mm
• Drilled hole diameter with tolerance: 1 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Within the terminal block (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.021 MJ
• Weight: 1.006 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4044918833134
• Customs tariff number Sales Organisation Germany: 85369010000
