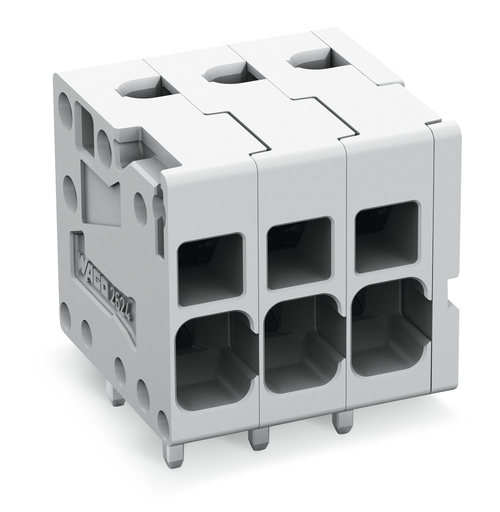

Features

• PCB terminal blocks with Push-in CAGE CLAMP® connection
• Push-in termination of solid and ferruled conductors
• Ideal for panel feedthrough applications via operation parallel to conductor entry
• Testing can be performed both parallel and perpendicular to conductor entry

Approvals

• Underwriters Laboratories Inc., cURus, E45172, UL 1059
• DEKRA Certification B.V., CB, NL-47057, EN 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-100535, EN 60947-7-4
• DEKRA Certification B.V., CSA, 70117145, C22.2 No. 158

Specifications

Notes

• Variants:: Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 320 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 400 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 41 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 26 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 26 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 5 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Fine-stranded conductor; with twin ferrule: 0.25 … 1.5 mm²
• Strip length: 10 … 12 mm / 0.39 … 0.47 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 6

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 31.5 mm / 1.24 inch
• Height: 19.4 mm / 0.764 inch
• Height from the surface: 15.4 mm / 0.606 inch
• Depth: 16.3 mm / 0.642 inch
• Solder pin length: 4 mm
• Solder pin dimensions: 0.8 x 1 mm
• Drilled hole diameter with tolerance: 1.3 (+0.1) mm

Mechanical Data

• Mounting type: Feed-through mounting

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 9.650 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143578349
• Customs tariff number Sales Organisation Germany: 85369010000
