Features

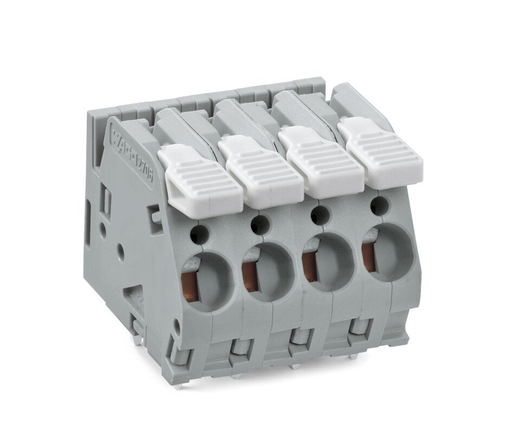

• High-current PCB terminal strips with lever-actuated CAGE CLAMP® connection
• Tool-free termination – fingers open/close levers
• Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
• Two solder pins per contact point for high mechanical stability
• Versions with optional commoning for distributing potentials

Approvals

• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CSA, 2516072, C22.2 No. 158
• DEKRA Certification B.V., CCA, NTR NL-7869, EN 60947-7-4
• DEKRA Certification B.V., CCA, 71-117469, EN 60947-7-4
• DEKRA Certification B.V., CCA, 2143801.01, EN 60947

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Ratings (note): Using adjacent jumpers, the rated voltage is reduced to 400 V with 7.5 mm pin spacing in Category III/3.
• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated voltage (III/2): 630 V
• Rated surge voltage (III/2): 6 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 6 kV
• Rated current: 41 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 30 A
• Rated voltage UL (Use Group C): 150 V
• Rated current UL (Use Group C): 30 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 30 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Lever
• Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.5 … 6 mm²
• Strip length: 11 … 12 mm / 0.43 … 0.47 inch
• Conductor connection direction to PCB: 30 °
• Pole No.: 4

Physical Data

• Pin spacing: 7.5 mm / 0.295 inch
• Width: 30 mm / 1.181 inch
• Height: 30 mm / 1.181 inch
• Height from the surface: 25.5 mm / 1.004 inch
• Depth: 30 mm / 1.181 inch
• Solder pin length: 4.5 mm
• Solder pin dimensions: 1 x 1.4 mm
• Drilled hole diameter with tolerance: 1.8 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.431 MJ
• Weight: 22.980 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4050821093138
• Customs tariff number Sales Organisation Germany: 85369010000
