Features

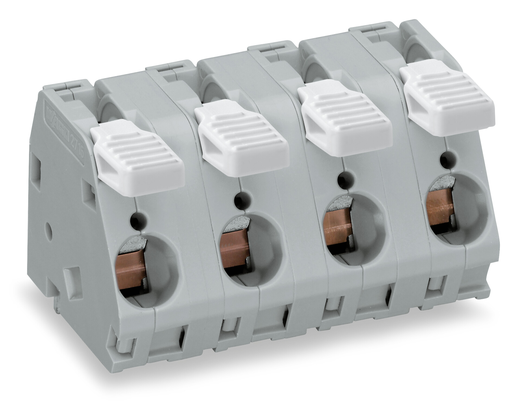

• High-current PCB terminal strips with lever-actuated CAGE CLAMP® connection
• Tool-free termination – fingers open/close levers
• Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
• Four solder pins per contact point provide high mechanical stability

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated voltage (III/2): 1000 V
• Rated surge voltage (III/2): 8 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 8 kV
• Rated current: 76 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Lever
• Solid conductor: 1.5 … 16 mm² / 16 … 6 AWG
• Fine-stranded conductor: 1.5 … 16 mm² / 16 … 6 AWG
• Fine-stranded conductor; with insulated ferrule: 1.5 … 10 mm²
• Fine-stranded conductor; with uninsulated ferrule: 1.5 … 10 mm²
• Strip length: 12 … 13 mm / 0.47 … 0.51 inch
• Conductor connection direction to PCB: 30 °
• Pole No.: 3

Physical Data

• Pin spacing: 20 mm / 0.787 inch
• Width: 60 mm / 2.362 inch
• Height: 33.3 mm / 1.311 inch
• Height from the surface: 28.8 mm / 1.134 inch
• Depth: 30 mm / 1.181 inch
• Solder pin length: 4.5 mm
• Solder pin dimensions: 0.95 x 1.2 mm
• Drilled hole diameter with tolerance: 1.6 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 4

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.708 MJ
• Weight: 35.275 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4050821479680
• Customs tariff number Sales Organisation Germany: 85369010000
