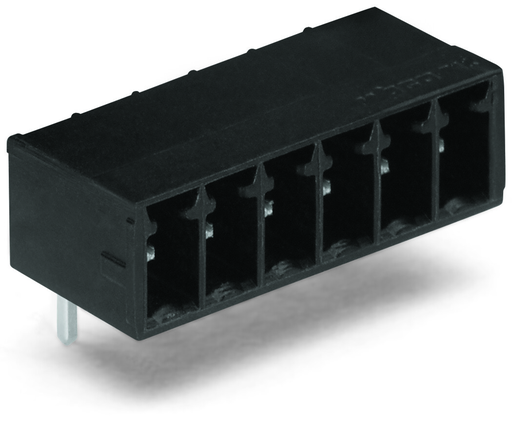

Features

• Male headers may be mounted horizontally or vertically via straight or angled solder pins
• Header housing is molded of THR-compatible insulation material for lead-free Reflow soldering
• Separated pin slots prevent damage and make the headers touch-proof when unplugged
• Coding option available

Approvals

• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL-7604, EN 61984
• DEKRA Certification B.V., KEMA/KEUR, 2198681.01, EN 61984

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 160 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 8 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 150 V
• Rated current UL (Use Group B): 8 A

Connection 1

• Pole No.: 4

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 15.4 mm / 0.606 inch
• Height: 10.3 mm / 0.406 inch
• Height from the surface: 6.9 mm / 0.272 inch
• Depth: 9.7 mm / 0.382 inch
• Solder pin length: 3.4 mm
• Solder pin dimensions: 0.8 x 0.8 mm
• Drilled hole diameter with tolerance: 1.2 (+0.1) mm

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For PCB
• Mismating protection: No
• Mating direction to the PCB: 0 °

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire male connector (in-line)
• Number of solder pins per potential: 1

Material Data

• Color: Black
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.017 MJ
• Weight: 0.872 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454859169
• Customs tariff number Sales Organisation Germany: 85366990990
