Features

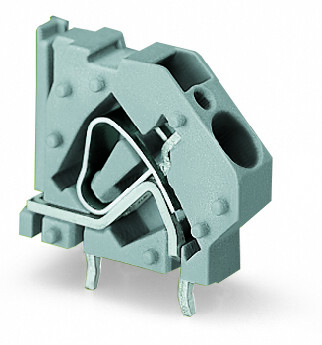

• Modular terminal blocks with screwdriver-actuated CAGE CLAMP® for custom terminal strip assemblies
• Versions with Ex approval
• Common and distribute potentials via comb-style jumper bars
• Double solder pins for high mechanical stability
• Integrated testing tap
• Marker slot for Mini-WSB markers

Approvals

• DEKRA Certification B.V., CCA, 2160584.16, EN 60947
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL-7097, EN 60947

Specifications

Notes

• Variants:: Versions for Ex e II and Ex i || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated voltage (III/2): 630 V
• Rated surge voltage (III/2): 6 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 6 kV
• Rated current: 41 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 30 A
• Rated voltage UL (Use Group C): 150 V
• Rated current UL (Use Group C): 30 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 30 A
• Rated voltage CSA (Use Group C): 150 V
• Rated current CSA (Use Group C): 30 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 4 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 4 mm²
• Strip length: 11 … 12 mm / 0.43 … 0.47 inch
• Conductor connection direction to PCB: 45 °
• Pole No.: 1

Physical Data

• Pin spacing: 7.5 mm / 0.295 inch
• Width: 9 mm / 0.354 inch
• Height: 27.5 mm / 1.083 inch
• Height from the surface: 23 mm / 0.906 inch
• Depth: 29.1 mm / 1.146 inch
• Solder pin length: 4.5 mm
• Solder pin dimensions: 1 x 1.4 mm
• Drilled hole diameter with tolerance: 1.8 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Within the terminal block (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Green-yellow
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.071 MJ
• Weight: 4.730 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4044918302661
• Customs tariff number Sales Organisation Germany: 85369010000
