Features

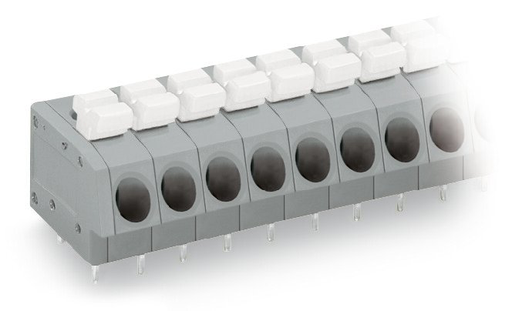

• PCB terminal strips with push-buttons and Push-in CAGE CLAMP® connection
• Push-in termination of solid and ferruled, fine-stranded conductors
• A large conductor entry accommodates conductors with a cross-section up to 12 AWG with an insulation diameter up to 4.2 mm
• Terminal strips with spacers to increase pin spacing
• Versions available with custom internal commoning (factory assembly), e.g., commoning ground conductor

Approvals

• UL International Germany GmbH, ENEC 15, ENEC-00096, EN 60998
• DEKRA Certification B.V., CCA, 71-110710, EN 60947-7-4
• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL 7781, EN 60947-7-4
• UL International Germany GmbH, UL, E45171, UL 1977

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || 10 mm pin spacing version with spacers || Direct marking || Versions for Ex i || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 24 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 10 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Solid conductor: 0.25 … 2.5 mm² / 20 … 12 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Strip length: 10 … 11 mm / 0.39 … 0.43 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 3

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 16.5 mm / 0.65 inch
• Height: 18.1 mm / 0.713 inch
• Height from the surface: 14.5 mm / 0.571 inch
• Depth: 15 mm / 0.591 inch
• Solder pin length: 3.6 mm
• Solder pin dimensions: 0.8 x 0.6 mm
• Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (staggered)
• Number of solder pins per potential: 2

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.045 MJ
• Weight: 3.192 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4044918514972
• Customs tariff number Sales Organisation Germany: 85369010000
