Features

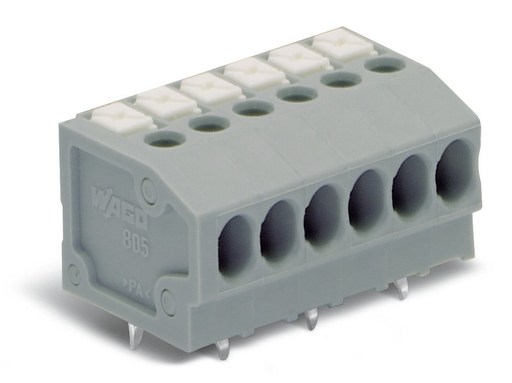

• PCB terminal strips with push-buttons and Push-in CAGE CLAMP® connection
• Push-in termination of solid and ferruled conductors
• Flush-mount push-buttons that close with minimal force for convenient termination/removal of fine-stranded conductors
• Convenient, tool-free operation
• Versions with/without test slots and spacers
• Versions available with custom internal commoning (factory assembly), e.g., commoning ground conductor

Approvals

• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CCA, 71-115456, EN 60947
• DEKRA Certification B.V., CSA, 1132097, C22.2
• DEKRA Certification B.V., CCA, NTR NL-7782, EN 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-110757, EN 60947-7-4
• DEKRA Certification B.V., CCA, NTR NL-7851, EN 60947

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 17.5 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group C): 150 V
• Rated current UL (Use Group C): 10 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1 mm²
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 5

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 19 mm / 0.748 inch
• Height: 13.7 mm / 0.539 inch
• Height from the surface: 10.5 mm / 0.413 inch
• Depth: 13.6 mm / 0.535 inch
• Solder pin length: 3.2 mm
• Solder pin dimensions: 0.5 x 0.75 mm
• Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (staggered)
• Number of solder pins per potential: 2

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.044 MJ
• Weight: 2.360 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4045454731533
• Customs tariff number Sales Organisation Germany: 85369010000
