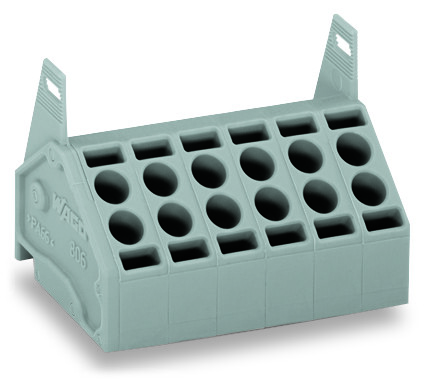

Features

• 2-conductor female connector with Push-in CAGE CLAMP® connection and screwdriver-actuation
• Push-in termination of solid and ferruled conductors
• Double entries for power supply and potential distribution
• Quick and easy PCB replacement, without disrupting looped-through potentials

Approvals

• DEKRA Certification B.V., CCA, NTR NL-7808, EN 60947-7-4
• DEKRA Certification B.V., CSA, 1132097, C22.2
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CCA, 71-112254, EN 60947-7-4

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 10 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1 mm²
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Conductor connection direction to PCB: 45 °
• Pole No.: 8

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 41.5 mm / 1.634 inch
• Height: 23.3 mm / 0.917 inch
• Depth: 19.8 mm / 0.78 inch
• Solder pin diameter: 1 mm

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For PCB
• Mating direction to the PCB: 90 °

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.204 MJ
• Weight: 10.212 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4045454077143
• Customs tariff number Sales Organisation Germany: 85369010000
