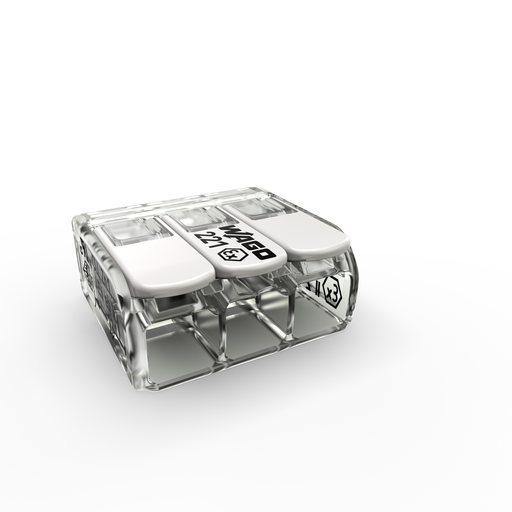

Features

• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-, 3- and 5-wire connectors
• Easily terminate conductors from 0.5 to 6 mm²
• Connection of all conductor types
• Time savings for installers and device manufacturers
• Quickly install devices with higher levels of power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
• Working voltages of 275 V or 440 V
• Custom carriers are possible
• ATEX (Ex 2 II G), IECEx (Ex eb IIC Gb) Zone 1, 2
• IECEX (Ex eb IIC Gb), American Ex (AEx eb IICGb) / Class 1, Zone 1

Approvals

• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 19.001 1U EX eb IIC Gb or Ex eb I Mb, IEC 60079-0
• Underwriters Laboratories Inc., UL, E69654, UL 486C
• Underwriters Laboratories Inc., AEx, E185892, UL 60079
• Lloyds Register, LR, 04/20013 (E8), EN 60998
• Physikalisch Technische Bundesanstalt, ATEX, PTB 19 ATEX 1001 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, IEC 60079-0
• CQST/CNEx, CCCEx, 2020312313000185, CNCA-C23-01
• DEKRA Certification B.V., KEMA/KEUR, 71-105677, EN 60998

Specifications

Notes

• Safety information 1: The permissible operating voltage of the connector with carrier (440 V or 275 V) depends on the mounting type.
• Safety information 2: Only approved in conjunction with a mounting carrier (221-511). Other carriers are possible, see certificate/file.The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN 60079-0, Section 1 or EN 60079-31.When installing the connectors in an enclosure of protection type “eb” (increased safety) per EN 60079-7, the clearances and creepage distances of Table 2 for this standard must be observed. See point 1 for the use of accessories. The connectors can be used both in Group II and Group I, as the standard requirements are identical in this case.The use of these components requires a new assessment by a notified certification agency.

Ratings Per Iec/En

• Ratings per: IEC/EN 60079-7

Ratings Per Ul

• Approvals per: UL 60079
• Rated voltage UL (Use Group C): 440 V
• Rated current UL (Use Group C): 30 A

Ex Information

• Ratings per: ATEX: PTB 19 ATEX 1001 U / IECEx: PTB 19.001 1U (Ex eb IIC Gb)
• Rated voltage EN (Ex e II): 440 V
• Rated current (Ex e II): 37 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Lever
• Connectable conductor materials: Copper
• Nominal cross-section: 6 mm²
• Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Strip length: 12 … 14 mm / 0.47 … 0.55 inch
• Wiring direction: Side-entry wiring

Physical Data

• Width: 22.9 mm / 0.902 inch
• Height: 10.1 mm / 0.398 inch
• Depth: 21.1 mm / 0.831 inch

Material Data

• Color: Transparent
• Flammability class per UL94: V2
• Fire load: 0.097 MJ
• Color of actuator: Light gray
• Weight: 4.348 g

Environmental Requirements

• Continuous operating temperature: -55 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4055143860574
• Customs tariff number Sales Organisation Germany: 85369010000
