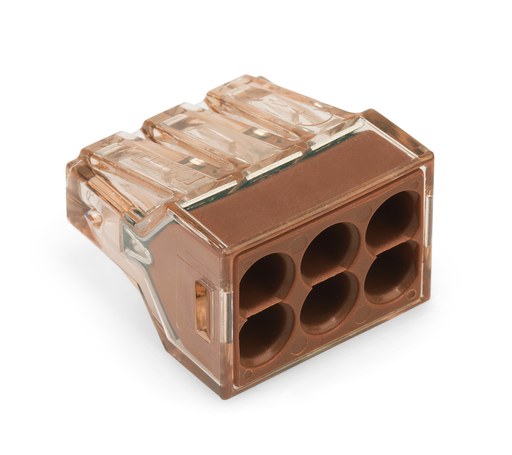

WAGO 773-606
773-606 WAGO 773-606
OutOfStock
6-conductor, PUSH WIRE® connector for junction boxes; for solid conductors; max. 4 mm²; brown clear housing; brown cover; Surrounding air temperature: max 60°C; 2,50 mm²
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
6-conductor, PUSH WIRE® connector for junction boxes; for solid conductors; max. 4 mm²; brown clear housing; brown cover; Surrounding air temperature: max 60°C; 2,50 mm²
Features
Approvals
- UL International Germany GmbH, UL, D-03479-A1, EN 60998
- American Bureau of Shipping, ABS, 18-HG1755093-PDA
Specifications
Ratings Per Iec/En
- Ratings per: IEC/EN 60664-1
- Nominal voltage (II/2): 400 V
- Rated surge voltage (II/2): 4 kV
- Rated current: 32 A
- Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
Connection 1
- Connection technology: PUSH WIRE®
- Actuation type: Push-in
- Connectable conductor materials: Copper || Aluminum
- Anschließbare Leiterwerkstoffe Hinweis: WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm² = 16 A4 mm² = 22 A
- Solid conductor: 1.5 … 4 mm²
- Strip length: 12 mm / 0.47 inch
- Wiring direction: Side-entry wiring
Physical Data
- Width: 18.8 mm / 0.74 inch
- Height: 13.1 mm / 0.516 inch
- Depth: 19.5 mm / 0.768 inch
Material Data
- Cover color: Brown
- Flammability class per UL94: V2
- Fire load: 0.029 MJ
- Weight: 3.530 g
Environmental Requirements
- Surrounding air temperature (operation): 60 °C
- Continuous operating temperature: 105 °C
Commercial Data
- Packaging type: Box
- Country of origin Sales Organisation Germany: CN
- GTIN: 4055143088671
- Customs tariff number Sales Organisation Germany: 85369010000
