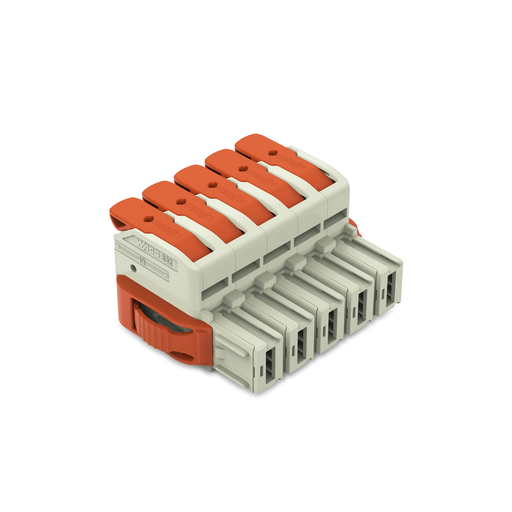

Features

• Intuitive and tool-free lever actuation
• Universal connection for all conductor types
• Push-in termination of solid or ferruled conductors
• Test slot 0° and 90° to conductor entry
• 100% protected against mismating
• Coding option available

Approvals

• DEKRA Certification B.V., CSA, 70180346, C22.2
• DEKRA Certification B.V., CB, NL-53084, IEC 61984
• DEKRA Certification B.V., KEMA/KEUR, 71-104731, EN 61984
• Underwriters Laboratories Inc., UL, E45172, C22.2 No. 158

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated voltage (III/2): 1000 V
• Rated surge voltage (III/2): 8 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 8 kV
• Rated current: 76 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 66 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 66 A
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 85 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 66 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 66 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Lever
• Solid conductor: 0.75 … 16 mm² / 18 … 4 AWG
• Fine-stranded conductor: 0.75 … 25 mm² / 18 … 4 AWG
• Fine-stranded conductor; with insulated ferrule: 0.75 … 16 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.75 … 16 mm²
• Strip length: 18 … 20 mm / 0.71 … 0.79 inch
• Pole No.: 5
• Conductor entry direction to mating direction: 0 °

Physical Data

• Pin spacing: 10.16 mm / 0.4 inch
• Width: 64.1 mm / 2.524 inch
• Height: 29.1 mm / 1.146 inch
• Depth: 49.8 mm / 1.961 inch

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor
• Mismating protection: Yes
• Locking of plug-in connection: Lateral locking lever

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polybutylene terephthalate (PBT)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Material of the additional spring for socket contact: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Silver-plated
• Fire load: 0.000 MJ
• Color of actuator: Orange
• Weight: 66.000 g

Environmental Requirements

• Limit temperature range: -60 … +120 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143736800
• Customs tariff number Sales Organisation Germany: 85366990990
