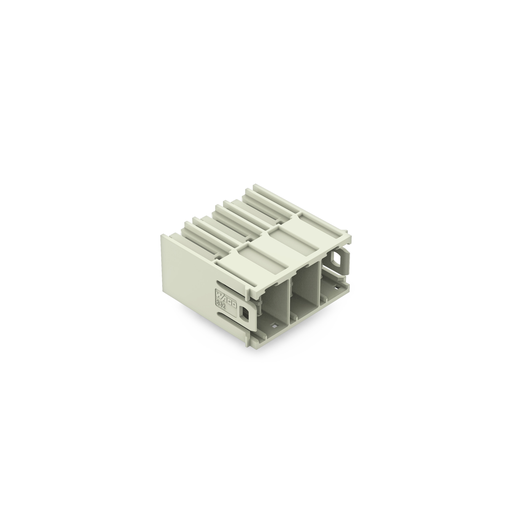

Features

• Male header may be mounted horizontally or vertically via straight or angled solder pins
• Three solder pins per pole provide high electrical and mechanical stability
• Mating face (IP2XB) with higher protection against accidental contact
• 100% protected against mismating
• Coding via coding fingers

Approvals

• Underwriters Laboratories Inc., UL, E45172, C22.2 No. 158
• DEKRA Certification B.V., KEMA/KEUR, 71-104731, EN 61984
• DEKRA Certification B.V., CSA, 70180346, C22.2
• DEKRA Certification B.V., CB, NL-53084, IEC 61984

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || Protection against PCB mounting errors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated voltage (III/2): 1000 V
• Rated surge voltage (III/2): 8 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 8 kV
• Rated current: 76 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 66 A
• Rated voltage UL (Use Group C): 300 V
• Rated current UL (Use Group C): 66 A
• Rated voltage UL (Use Group D): 600 V
• Rated current UL (Use Group D): 5 A
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 85 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 66 A
• Rated voltage CSA (Use Group C): 300 V
• Rated current CSA (Use Group C): 66 A
• Rated voltage CSA (Use Group D): 600 V
• Rated current CSA (Use Group D): 5 A

Connection 1

• Pole No.: 3

Physical Data

• Pin spacing: 10.16 mm / 0.4 inch
• Width: 31.78 mm / 1.251 inch
• Height: 20.5 mm / 0.807 inch
• Height from the surface: 16.5 mm / 0.65 inch
• Depth: 32 mm / 1.26 inch
• Solder pin length: 4 mm
• Solder pin dimensions: 1.2 x 1.2 mm
• Drilled hole diameter with tolerance: 1.7 (+0.1) mm

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For PCB
• Mismating protection: Yes
• Mating direction to the PCB: 0 °
• Locking of plug-in connection: Without

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire male connector (in-line)
• Number of solder pins per potential: 3

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polybutylene terephthalate (PBT)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Silver-plated
• Fire load: 0.000 MJ
• Weight: 16.358 g

Environmental Requirements

• Limit temperature range: -60 … +120 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143921251
• Customs tariff number Sales Organisation Germany: 85366990990
